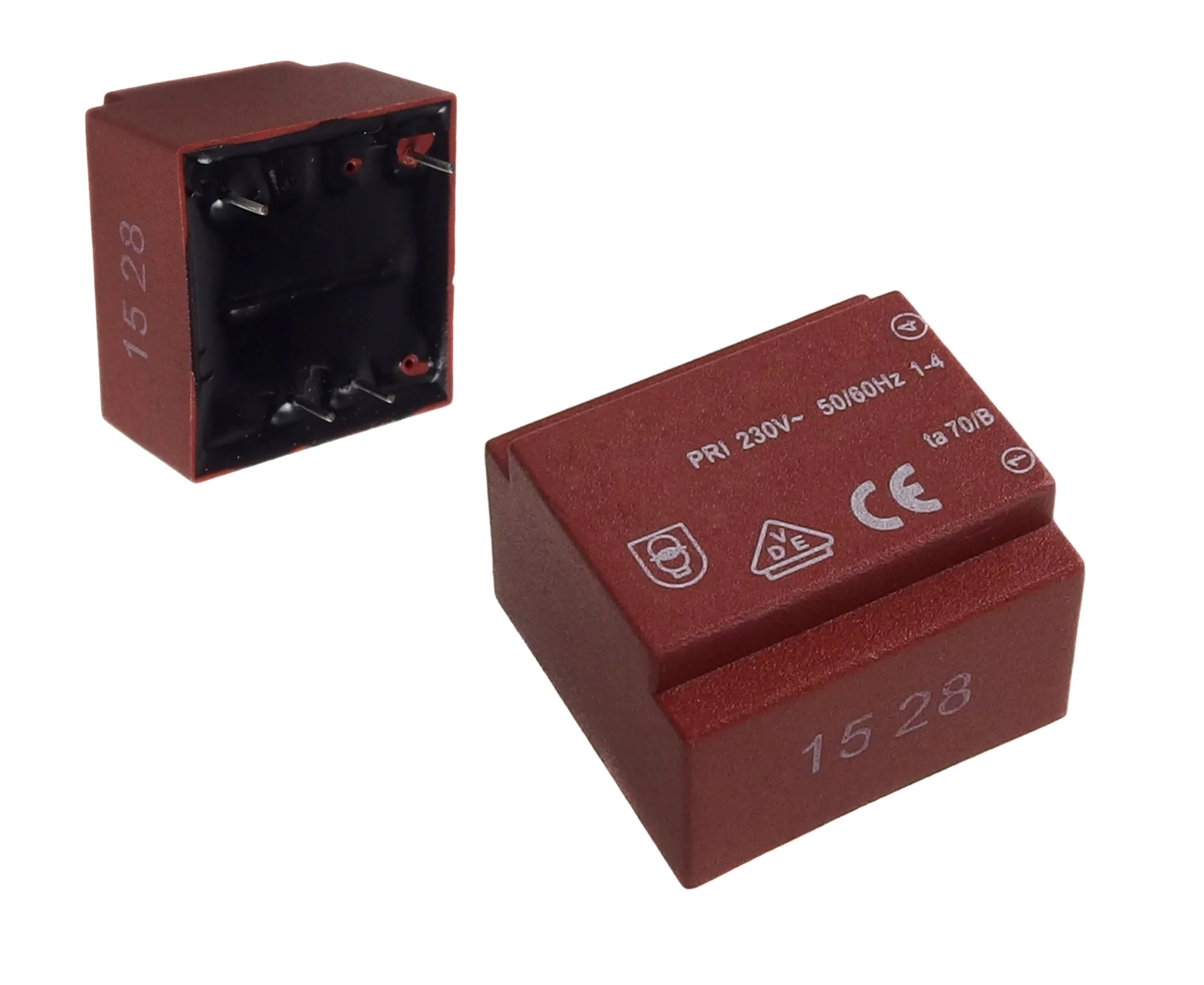

Encapsulated transformer; 2VA

Symbol Micros: TR Z02.00/2x12b II

121207

TR Z02.00/2x12b II

Contractor Symbol:

Case : Rys.TRZ02.002x12bII

Datasheet

Technical drawing Add to favourites

Encapsulated transformer; 2VA; 230V/2x12V; 83mA; Ta=70°C; H=27,4mm; equivalent: 44129

Parameters

VA power:	2VA
Input voltage:	230V
Secondary voltage 1:	12V
Secondary voltage 2:	12V
Thermal class:	70°C
Mounting:	PCB
Transformator type:	Encapsulated transformer

All parameters





Add inquiry (RFQ)

Item available on request





Add inquiry (RFQ)

Item in delivery

Estimated date:
2025-08-30

Quantity of pcs.: 240

• Parameters

VA power:	2VA
Input voltage:	230V
Secondary voltage 1:	12V
Secondary voltage 2:	12V
Thermal class:	70°C
Mounting:	PCB
Transformator type:	Encapsulated transformer
Manufacturer:	N/A
Secondary winding current 1:	83mA
