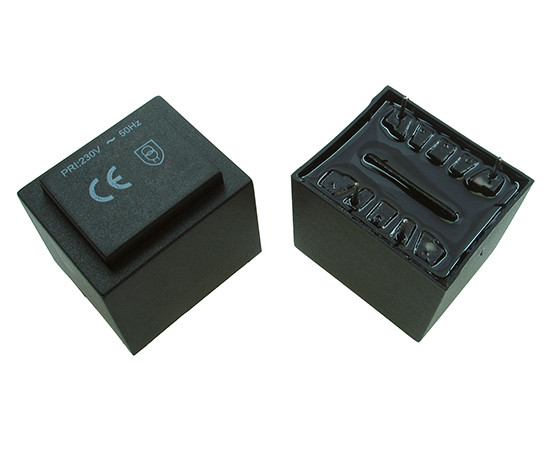

Encapsulated transformer; 3.0VA

Symbol Micros: TR Z03.00/09

21255

TR Z03.00/09

Contractor Symbol:

Case : Rys.T08318A

Datasheet

Technical drawing Add to favourites

Encapsulated transformer; 3.0VA; 230V/9V; 334mA; Ta=50°C; H=29,8mm equivalent: BV EI 305 2051; TR Z03.00/09b

Product description

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

VA power:	3VA
Input voltage:	230V
Secondary voltage 1:	9V
Thermal class:	50°C
Mounting:	PCB
Transformator type:	Encapsulated transformer
Manufacturer:	N/A

All parameters

Manufacturer:: WHT Manufacturer part number:   Case style: Rys.T08318A

In stock:

440 pcs.

Quantity of pcs.	1+	3+	10+	30+	150+
Net price (EUR)	2,4899	2,1470	1,9473	1,8486	1,7782

Add to comparison tool Add inquiry (RFQ)

Packaging:
30/150 Quantity (multiple: 1)

- +

• Parameters
• Description

VA power:	3VA
Input voltage:	230V
Secondary voltage 1:	9V
Thermal class:	50°C
Mounting:	PCB
Transformator type:	Encapsulated transformer
Manufacturer:	N/A
Secondary winding current 1:	334mA

Detailed description

Type: Encapsulated transformer Model: TR Z03.00/09 Power rating: 3.0VA Primary voltage: 230V (50Hz) Secondary voltage: 9V Secondary current: 334mA Thermal class: T50B Dimensions: 32.5x27.5x29.5mm
