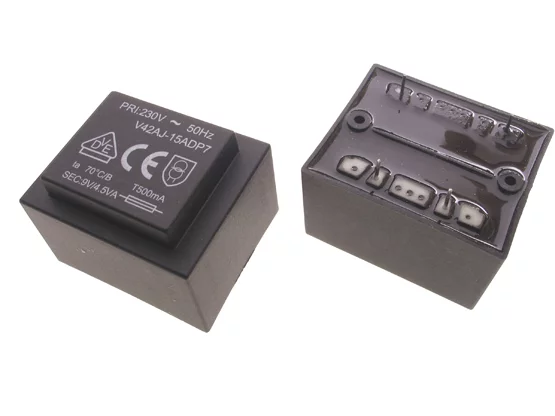

Encapsulated transformer; 4.5VA

Symbol Micros: TR Z04.50/09b

23704

TR Z04.50/09b

Contractor Symbol:

Case : Rys.TR5.0VA-1

Datasheet

Technical drawing Add to favourites

Encapsulated transformer; 4.5VA; 230V/9V; 500mA; Ta=70°C; H=32,3mm

Product description

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

VA power:	4,5VA
Input voltage:	230V
Secondary voltage 1:	9V
Thermal class:	70°C
Mounting:	PCB
Transformator type:	Encapsulated transformer
Manufacturer:	N/A

All parameters

Manufacturer:: WHT Manufacturer part number:   Case style: Rys.TR5.0VA-1

In stock:

450 pcs.

Quantity of pcs.	1+	3+	10+	30+	90+
Net price (EUR)	2,7629	2,3764	2,1464	2,0359	1,9738

Add to comparison tool Add inquiry (RFQ)

Packaging:
90 Quantity (multiple: 1)

- +

Manufacturer:: WHT Manufacturer part number:   Case style: Rys.TR5.0VA-1

In stock:

75 pcs.

Quantity of pcs.	1+	3+	5+	25+	75+
Net price (EUR)	2,7629	2,3718	2,2545	2,0428	1,9738

Add to comparison tool Add inquiry (RFQ)

Packaging:
75 Quantity (multiple: 1)

- +

• Parameters
• Description

VA power:	4,5VA
Input voltage:	230V
Secondary voltage 1:	9V
Thermal class:	70°C
Mounting:	PCB
Transformator type:	Encapsulated transformer
Manufacturer:	N/A
Secondary winding current 1:	500mA

Detailed description

Type: Encapsulated transformer Model: TR Z04.50/09b Power rating: 4.5VA Primary voltage: 230V (50Hz) Secondary voltage: 9V Secondary current: 500mA Thermal class: T70B Dimensions: 44x37x32.5mm
