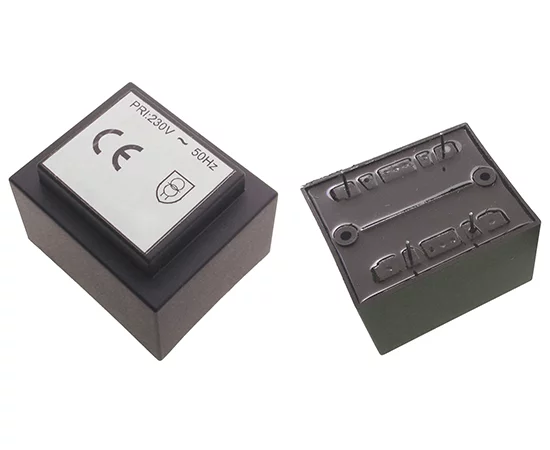

Encapsulated transformer; 6VA

Symbol Micros: TR Z06.00/09

36340

TR Z06.00/09

Contractor Symbol:

Case : Rys.TR5.0VA-1

Datasheet

Technical drawing Add to favourites

Encapsulated transformer; 6VA; 230V/9V; 667mA; Ta=50°C; H=32,3mm odpowiednik: VN42.14/15507; BV EI 422 1285; TR Z06.00/09b; TEZ6/D/9V

Product description

Parameters

VA power:	6VA
Input voltage:	230V
Secondary voltage 1:	9V
Thermal class:	50°C
Mounting:	PCB
Transformator type:	Encapsulated transformer
Manufacturer:	N/A

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters
• Description

VA power:	6VA
Input voltage:	230V
Secondary voltage 1:	9V
Thermal class:	50°C
Mounting:	PCB
Transformator type:	Encapsulated transformer
Manufacturer:	N/A
Secondary winding current 1:	667mA

Detailed description

Type: Encapsulated transformer Model: TR Z06.00/09 Power rating: 6VA Primary voltage: 230V (50Hz) Secondary voltage: 9V Secondary current: 667mA Thermal class: T50B Dimensions: 44.3x37x32.3mm
