SL25T120FL SLKOR

Symbol Micros: TSL25t120fl

402682

TSL25t120fl

Contractor Symbol:

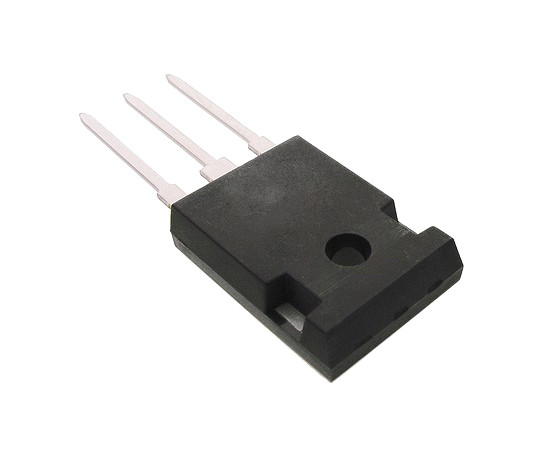

Case : TO247

Datasheet

Technical drawing Add to favourites

Transistor IGBT ; 1200V; 20V; 50A; 60A; 350W; 4,5V~6,5V; 120nC; -55°C~150°C;

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Gate charge:	120nC
Max. dissipated power:	350W
Max. collector current:	50A
Max collector current (impulse):	60A
Forvard volatge [Vgeth]:	4,5V ~ 6,5V
Case:	TO247
Manufacturer:	SLKOR

All parameters

Manufacturer:: SLKOR Manufacturer part number: SL25T120FL RoHS Case style: TO247 Datasheet

In stock:

25 pcs.

Quantity of pcs.	1+	5+	30+	150+	300+
Net price (EUR)	2,4288	1,9285	1,7100	1,6349	1,6184

Add to comparison tool Add inquiry (RFQ)

Packaging:
30 Quantity (multiple: 1)

- +

• Parameters

Gate charge:	120nC
Max. dissipated power:	350W
Max. collector current:	50A
Max collector current (impulse):	60A
Forvard volatge [Vgeth]:	4,5V ~ 6,5V
Case:	TO247
Manufacturer:	SLKOR
Collector-emitter voltage:	1200V
Operating temperature (range):	-55°C ~ 150°C
Gate-emitter voltage:	20V
Mounting:	THT
