SMBTA06UPNE6327 Infineon

Symbol Micros: TSMBTA06upn

113340

TSMBTA06upn

Contractor Symbol:

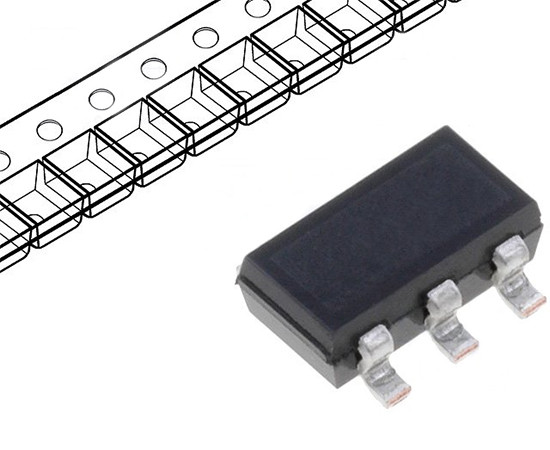

Case : SC-74

Datasheet

Technical drawing Add to favourites

NPN/PNP 80V 500mA 330mW 100MHz SMBTA06UPNE6327HTSA1

Parameters

Power dissipation:	330mW
Cutoff frequency:	100MHz
Current gain factor:	100
Manufacturer:	Infineon Technologies
Case:	SC-74
Max. collector current:	500mA
Max collector-emmiter voltage:	80V

All parameters

Manufacturer:: Infineon Manufacturer part number: SMBTA06UPNE6327HTSA1 RoHS Case style: SC-74 Datasheet

In stock:

3000 pcs.

Quantity of pcs.	5+	20+	100+	500+	3000+
Net price (EUR)	0,2091	0,1061	0,0642	0,0510	0,0465

Add to comparison tool Add inquiry (RFQ)

Packaging:
3000 Quantity (multiple: 1)

- +

• Parameters

Power dissipation:	330mW
Cutoff frequency:	100MHz
Current gain factor:	100
Manufacturer:	Infineon Technologies
Case:	SC-74
Max. collector current:	500mA
Max collector-emmiter voltage:	80V
Operating temperature (range):	-65°C ~ 150°C
Transistor type:	NPN/PNP
