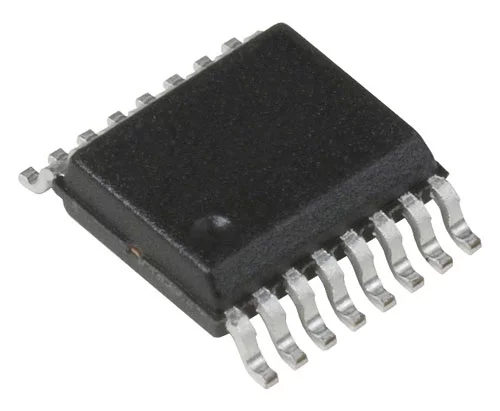

ADUM3190TRQZ

Symbol Micros: UIADUM3190trqz

154975

UIADUM3190trqz

Contractor Symbol:

Case : QSOP16

Datasheet

Technical drawing Add to favourites

Isolation Amplifiers 2.5kV; Single; Galvanic; 10MHz; 400kHz; 72 dB; 2,5mV; 1,4 mA, 2,9 mA; 3V~20V; -40°C~125°C; Substitute: ADUM3190TRQZ-RL7;

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Propagation time:	1ms
Case:	QSOP16
Nominal voltage:	3V ~ 22V
Channel configuration:	1/1
Manufacturer:	ANALOG DEVICES
Insulation breakdown voltage:	2500V
Number of channels:	1

All parameters

Manufacturer:: AD - Analog Devices Manufacturer part number: ADUM3190TRQZ RoHS Case style: QSOP16 Datasheet

In stock:

14 pcs.

Quantity of pcs.	1+	4+	14+	42+	126+
Net price (EUR)	7,4039	6,0956	5,4919	5,2030	5,0362

Add to comparison tool Add inquiry (RFQ)

Packaging:
14 Quantity (multiple: 1)

- +

• Parameters

Propagation time:	1ms
Case:	QSOP16
Nominal voltage:	3V ~ 22V
Channel configuration:	1/1
Manufacturer:	ANALOG DEVICES
Insulation breakdown voltage:	2500V
Number of channels:	1
Operating temperature (range):	-40°C ~ 125°C
Polarisation:	Bipolar
