DMV10W-2421 PAIRUI

Symbol Micros: UIAM10TW2405dz

105314

UIAM10TW2405dz

Contractor Symbol:

Case : Rys.AM10TW-xxxxDZ

Datasheet

Technical drawing Add to favourites

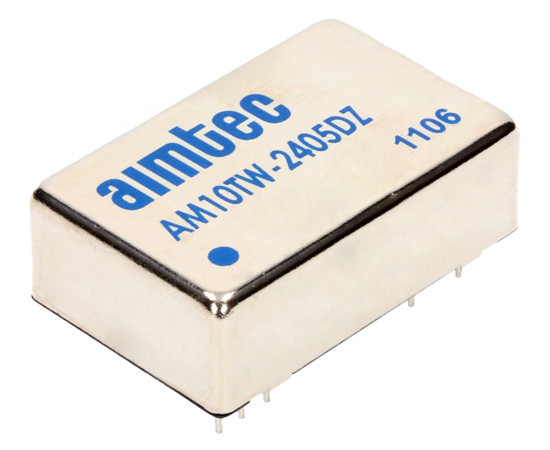

10W DC-DC Converter; Dual; Vin 9V~36V; Vout +/-5V; +/-1A; 220uF; 1500VDC; EFF81%; Substitute: AM10TW-2405DZ AIMTEC;

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Output current:	1A
Input voltage range:	9V ~ 36V
Efficiency:	81%
Power:	10W
Input voltage:	24V
Insulation breakdown voltage:	1500V
Output current 1:	1000mA

All parameters

Manufacturer:: PAIRUI Manufacturer part number: DMV10W-2421 RoHS Case style: Rys.AM10TW-xxxxDZ Datasheet

In stock:

1 pcs.

Quantity of pcs.	1+	2+	4+	10+	20+
Net price (EUR)	15,7653	15,2430	14,8635	14,5138	14,3321

Add to comparison tool Add inquiry (RFQ)

Packaging:
2 Quantity (multiple: 1)

- +

• Parameters

Output current:	1A
Input voltage range:	9V ~ 36V
Efficiency:	81%
Power:	10W
Input voltage:	24V
Insulation breakdown voltage:	1500V
Output current 1:	1000mA
Output voltage:	5V
Output current 2:	-1A
Secondary voltage 1:	5V
Secondary voltage 2:	-5V
