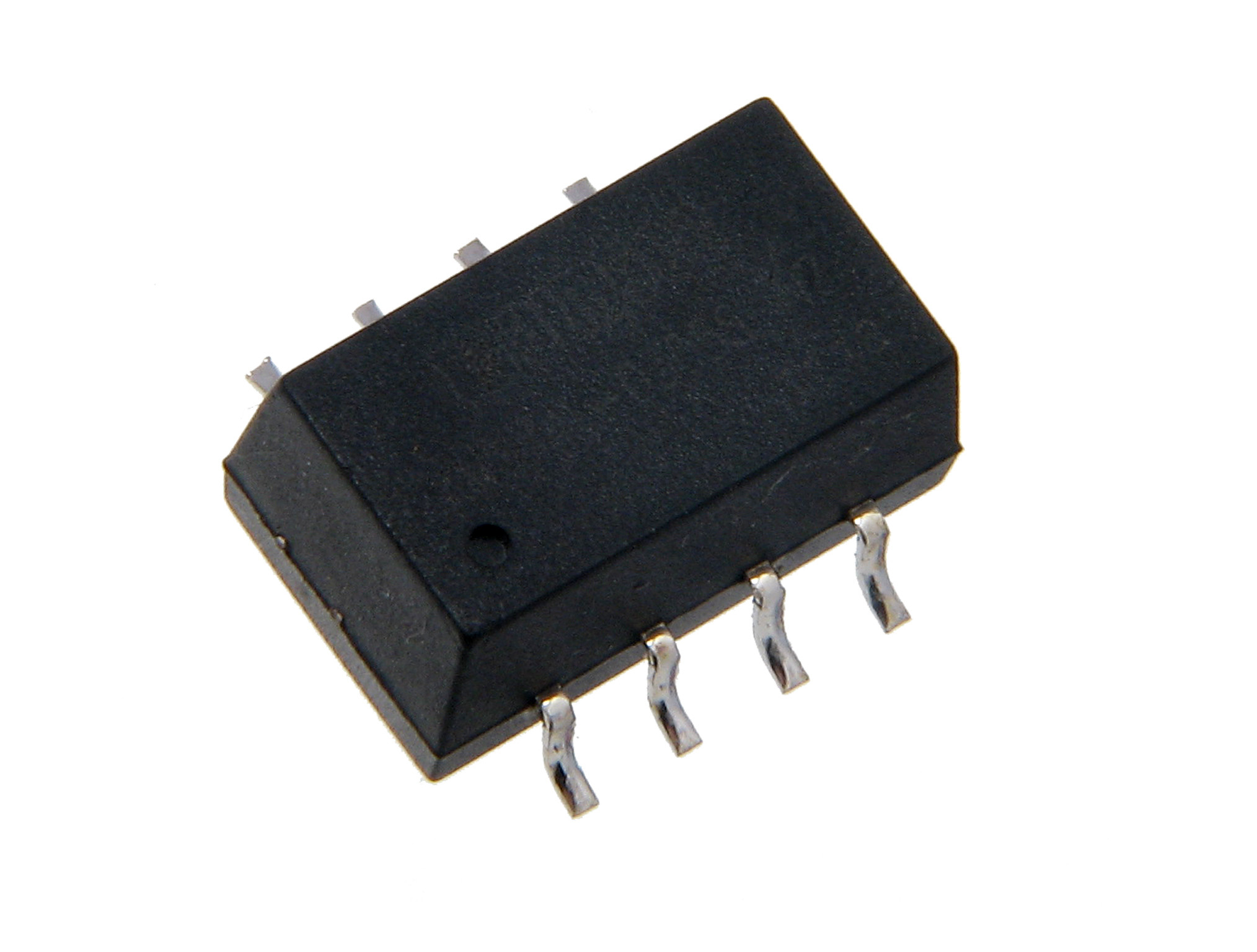

AM1/4L-0305S-NZ

Symbol Micros: UIAM1/4L0305snz

54781

UIAM1/4L0305snz

Contractor Symbol:

Case : Rys.AM1/4LxxxxS-NZ

Datasheet

Technical drawing Add to favourites

0,25W DC-DC Converter; Single; Vin 3,3V; Vout 5V; 50mA; 1000VDC; EFF60%;

Product description

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Output current:	50mA
Input voltage range:	3V ~ 3,6V
Efficiency:	60%
Power:	0,25W
Output voltage range [V]:	5V
Input voltage:	3,3V
Insulation breakdown voltage:	1000V

All parameters

Manufacturer:: AIMTEC Manufacturer part number: AM1/4L-0305S-NZ RoHS Case style: PDIP08smd Datasheet

In stock:

5 pcs.

Quantity of pcs.	1+	2+	3+	5+
Net price (EUR)	5,1370	4,5044	4,2260	3,9522

Add to comparison tool Add inquiry (RFQ)

Stock available
Until stock lasts Packaging:
5 Quantity (multiple: 1)

- +

• Parameters
• Description

Output current:	50mA
Input voltage range:	3V ~ 3,6V
Efficiency:	60%
Power:	0,25W
Output voltage range [V]:	5V
Input voltage:	3,3V
Insulation breakdown voltage:	1000V
Output voltage:	5V

Detailed description

Micros Part Number

UIAM1/4L0305snz

Manufacturer Part Number

AM1/4L-0305S-NZ

Wattage

0.25W

Max output current

0.05A

Output Type

Single

Input Voltage

3~3.6VDC

Output Voltage

5V

Input Output Isolation (VDC)

1K

Package

SMD

Temperature range

-40°C to +85°C
