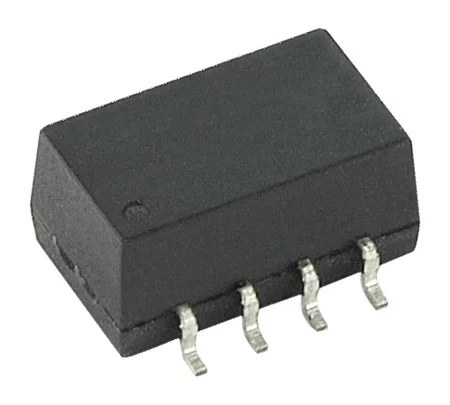

AM1/4L-2405D-NZ SMD

Symbol Micros: UIAM1/4L2405dnz

80463

UIAM1/4L2405dnz

Contractor Symbol:

Case : SOP10P

Datasheet

Technical drawing Add to favourites

0.25W DC-DC Converter, Dual, Vin 24V, Vout +-5V, +-25mA, 1000VDC, EFF62%

Product description

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Output current:	25mA
Power:	0,25W
Output voltage range [V]:	+-5
Input voltage:	24V
Insulation breakdown voltage:	1000V

All parameters

Manufacturer:: AIMTEC Manufacturer part number: AM1/4L-2405D RoHS Case style: SOP10P Datasheet

In stock:

5 pcs.

Quantity of pcs.	1+	5+	20+	50+	200+
Net price (EUR)	5,1439	4,4215	4,1409	4,0420	3,9568

Add to comparison tool Add inquiry (RFQ)

Packaging:
5 Quantity (multiple: 1)

- +

• Parameters
• Description

Output current:	25mA
Power:	0,25W
Output voltage range [V]:	+-5
Input voltage:	24V
Insulation breakdown voltage:	1000V

Detailed description

Micros Part Number

UIAM1/4L2405dnz

Manufacturer Part Number

AM1/4L-2405D-NZ

Wattage

0.25W

Max output current

±0.025A

Output Type

Dual

Input Voltage

24VDC

Output Voltage

5V, -5V, ±5%. max.

Input Output Isolation (VDC)

1K

Package

SMD

Temperature range

-40°C to +85°C
