DAE1-2411

Symbol Micros: UIAM1D2405sz c

109871

UIAM1D2405sz c

Contractor Symbol:

Case : Rys.AM1D-xxxxS

Datasheet

Add to favourites

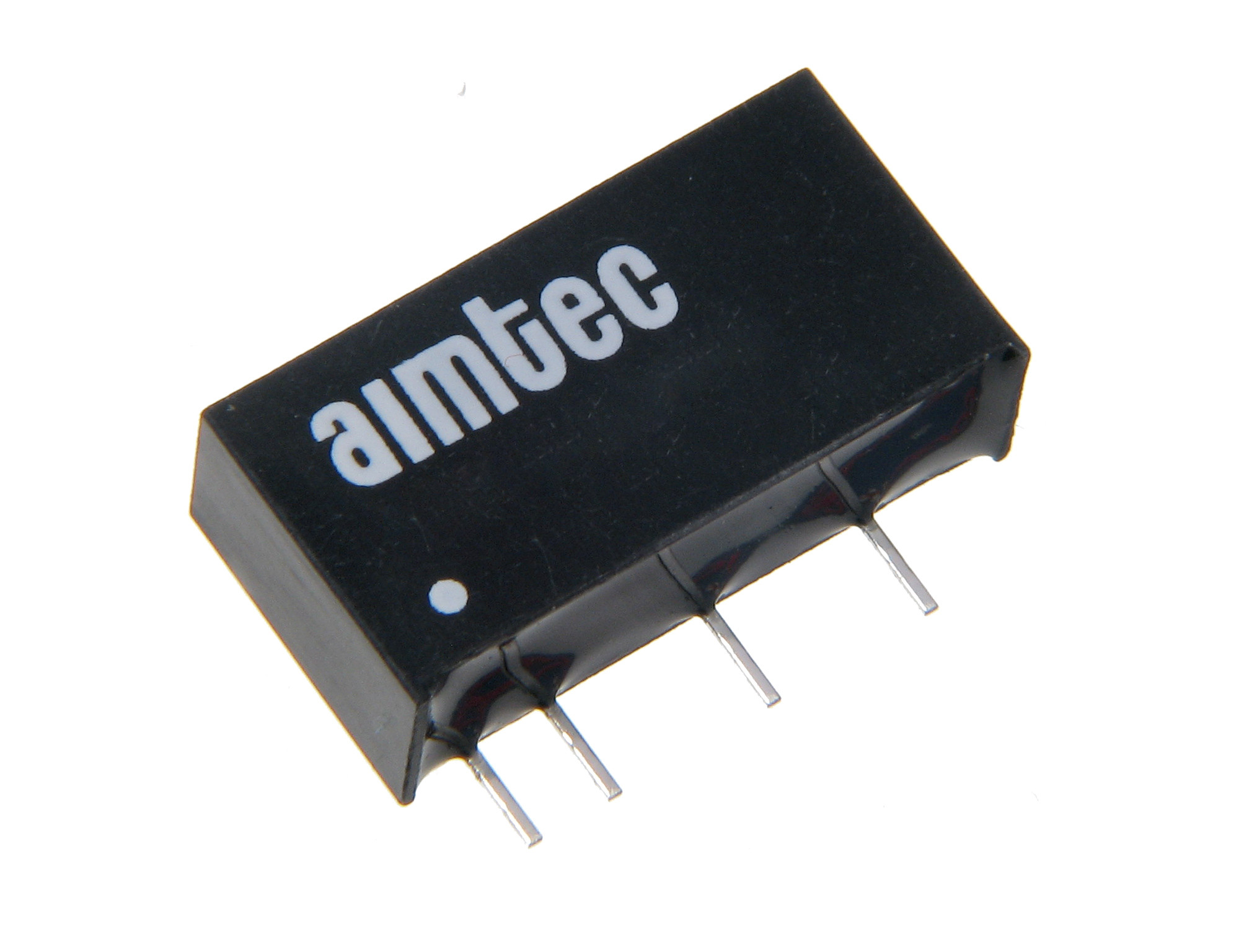

DC-DC Converter; Isolated; Single Output; 1W; 200mA; 5V; 1kV; 21,6V~26,4V; -40°C~85°C; EFF 80%; Substitute: AM1D-2405SZ;

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Input voltage range:	21,6V ~ 26,4V
Output current:	0,2A
Output voltage range [V]:	5V
Efficiency:	80%
Power:	1W
Input voltage:	24V
Output current 1:	200mA

All parameters

Manufacturer:: CHINA Manufacturer part number: DAE1-2411 RoHS Case style: Rys.AM1D-xxxxS

In stock:

10 pcs.

Quantity of pcs.	1+	3+	10+	30+	100+
Net price (EUR)	2,5298	2,1117	1,8698	1,7547	1,6866

Add to comparison tool Add inquiry (RFQ)

Packaging:
10 Quantity (multiple: 1)

- +

• Parameters

Input voltage range:	21,6V ~ 26,4V
Output current:	0,2A
Output voltage range [V]:	5V
Efficiency:	80%
Power:	1W
Input voltage:	24V
Output current 1:	200mA
Output voltage:	5V
Insulation breakdown voltage:	1000V
Secondary voltage 1:	5V
