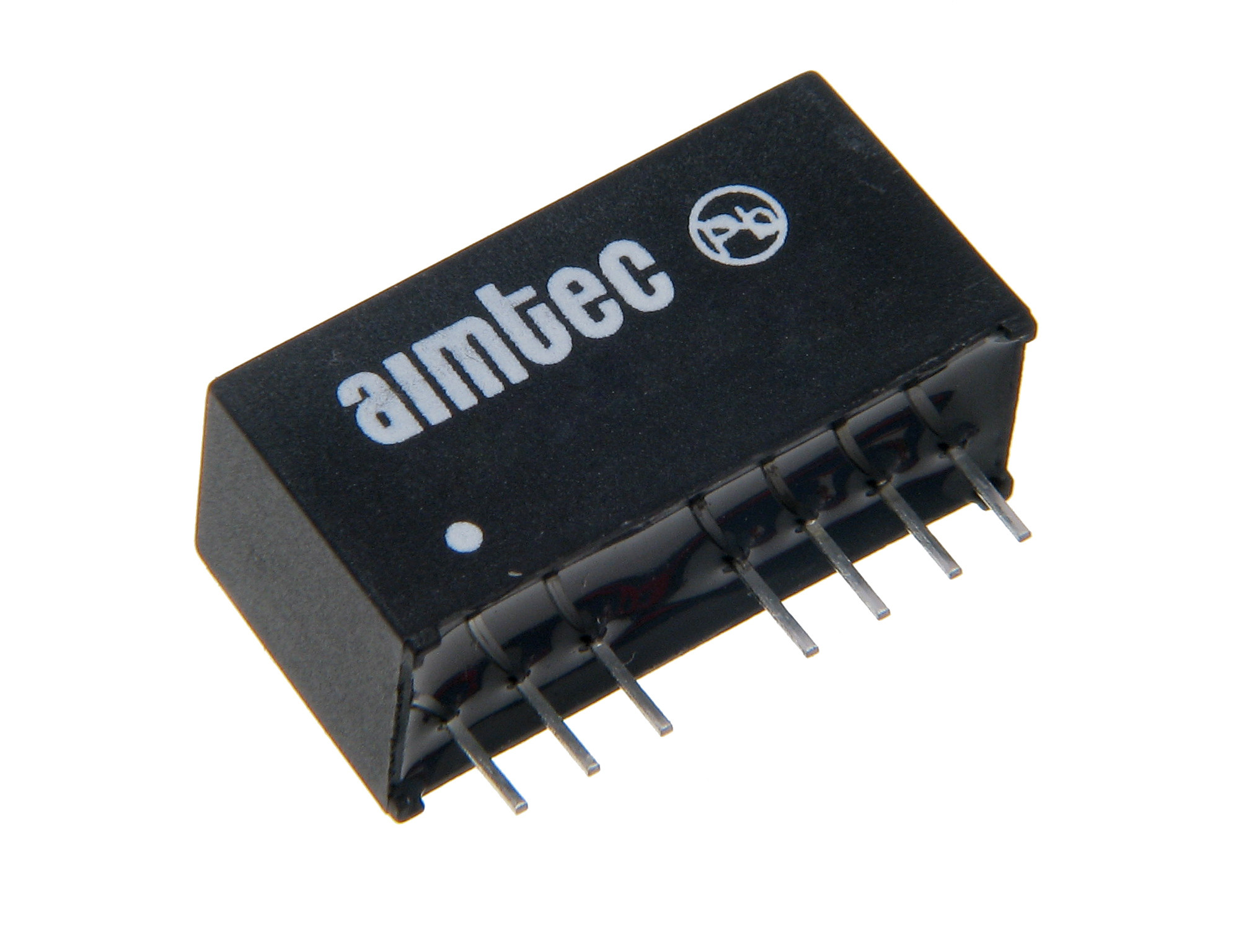

AM1G-2403SH30Z

Symbol Micros: UIAM1G2403sh30z

42600

UIAM1G2403sh30z

Contractor Symbol:

Case : Rys.AM1G-xxxxSH30Z

Datasheet

Add to favourites

1W DC-DC Converter, Single, Vin 18-36V, Vout 3.3V, 303mA, 3000VDC, EFF65%

Product description

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Output current:	303mA
Input voltage range:	18 - 36
Power:	1W
Insulation breakdown voltage:	3000V
Output voltage:	3,3V

All parameters

Manufacturer:: AIMTEC Manufacturer part number: AM1G-2403SH30Z RoHS Case style: Rys.AM1G-xxxxSH30Z Datasheet

In stock:

2 pcs.

Quantity of pcs.	1+	2+	4+	10+	20+
Net price (EUR)	12,6619	12,2432	11,9395	11,6589	11,5117

Add to comparison tool Add inquiry (RFQ)

Packaging:
2 Quantity (multiple: 1)

- +

• Parameters
• Description

Output current:	303mA
Input voltage range:	18 - 36
Power:	1W
Insulation breakdown voltage:	3000V
Output voltage:	3,3V

Detailed description

Micros Part Number

UIAM1G2403sh30z

Manufacturer Part Number

AM1G-2403SH30Z

Wattage

1W

Max output current

0.303A

Output Type

Single

Input Voltage

18~36VDC

Output Voltage

3.3V, ±2% max.

Input Output Isolation (VDC)

3K

Package

SIP8

Temperature range

-40°C to +85°C
