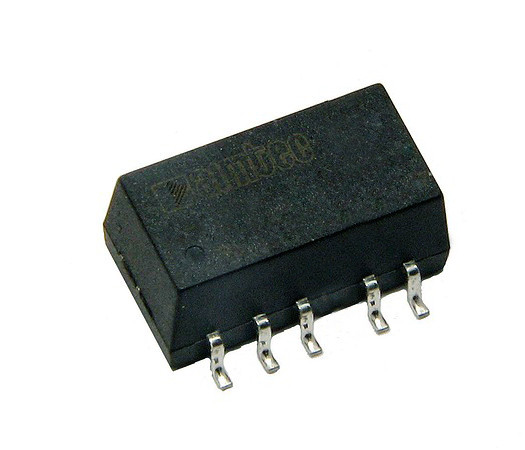

AM1L-0505SH30-NZ

Symbol Micros: UIAM1L0505sh30nz

37115

UIAM1L0505sh30nz

Contractor Symbol:

Case : Rys.AM1L-xxxx30

Datasheet

Technical drawing Add to favourites

1W DC-DC Converter, Single, Vin 5V, Vout 5V, 200mA, 3000VDC, EFF70%

Product description

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Output current:	0,2A
Power:	1W
Input voltage:	5V
Insulation breakdown voltage:	3000V
Output voltage:	5V

All parameters

Manufacturer:: TOPPOWER Manufacturer part number: TPVT0505AP RoHS Case style: Rys.AM1L-xxxx30

In stock:

10 pcs.

Quantity of pcs.	1+	3+	10+	30+	100+
Net price (EUR)	6,0365	5,5626	5,2704	5,1209	5,0312

Add to comparison tool Add inquiry (RFQ)

Packaging:
10 Quantity (multiple: 1)

- +

• Parameters
• Description

Output current:	0,2A
Power:	1W
Input voltage:	5V
Insulation breakdown voltage:	3000V
Output voltage:	5V

Detailed description

Micros Part Number

UIAM1L0505sh30nz

Manufacturer Part Number

AM1L-0505SH30-NZ

Wattage

1W

Max output current

0.2A

Output Type

Single

Input Voltage

4.5~5.5VDC

Output Voltage

5V, ±5%. max.

Input Output Isolation (VDC)

3K

Package

SMD

Temperature range

-40°C to +85°C
