AM1LS-0505D-NZ AIMTEC

Symbol Micros: UIAM1LS0505dnz

109062

UIAM1LS0505dnz

Contractor Symbol:

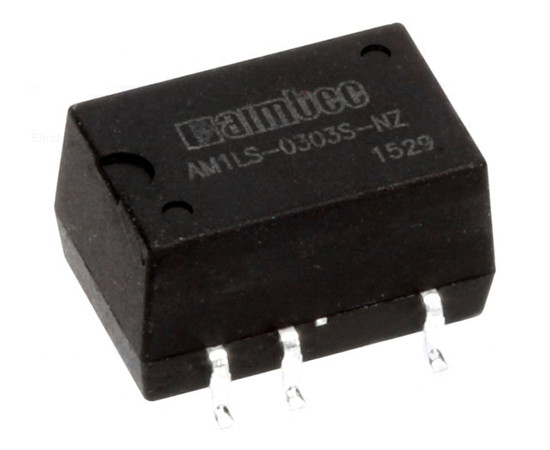

Case : Rys.AM1LS-xxxx-NZ

Datasheet

Technical drawing Add to favourites

1W DC-DC Converter; Dual; Vin 4,5V~5,5V; Vout +/-5V; +/-100mA; 1500VDC; EFF82%;

Parameters

Output current:	0,1A
Input voltage range:	4,5V ~ 5,5V
Efficiency:	82%
Power:	1W
Input voltage:	5V
Insulation breakdown voltage:	1500V
Output current 1:	100mA

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Output current:	0,1A
Input voltage range:	4,5V ~ 5,5V
Efficiency:	82%
Power:	1W
Input voltage:	5V
Insulation breakdown voltage:	1500V
Output current 1:	100mA
Output voltage:	5V
Output current 2:	-100mA
Secondary voltage 1:	5V
Secondary voltage 2:	-5V
