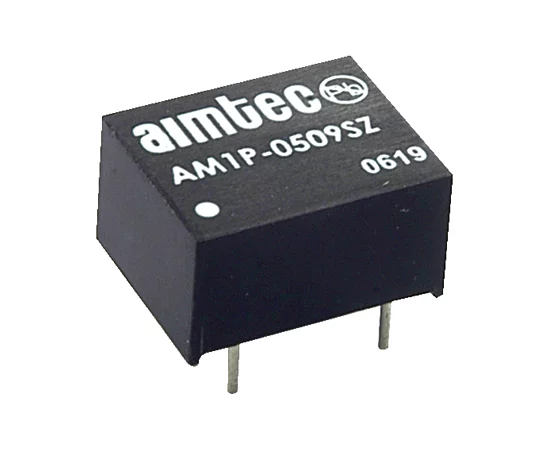

AM1P-2405SH30Z AIMTEC                                                   D

Symbol Micros: UIAM1P2405sh30z

87645

UIAM1P2405sh30z

Contractor Symbol:

Case : Rys.AM1P-xxxx-SH30Z

Datasheet

Add to favourites

1W DC-DC Converter, Single, Vin 21.6-26.4V Vout 5V, 200mA, 3000VDC, EFF75%

Product description

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Output current:	0,2A
Power:	1W
Input voltage:	24V
Insulation breakdown voltage:	3000V
Output voltage:	5V

All parameters

Manufacturer:: AIMTEC Manufacturer part number: AM1P-2405SH30Z RoHS Case style: Rys.AM1P-xxxx-SH30Z Datasheet

In stock:

6 pcs.

Quantity of pcs.	1+	5+	10+	30+	100+
Net price (EUR)	5,8133	5,2152	5,0749	4,9323	4,8448

Add to comparison tool Add inquiry (RFQ)

Packaging:
5 Quantity (multiple: 1)

- +

• Parameters
• Description

Output current:	0,2A
Power:	1W
Input voltage:	24V
Insulation breakdown voltage:	3000V
Output voltage:	5V

Detailed description

Micros Part Number

UIAM1P2405sh30z

Manufacturer Part Number

AM1P-2405SH30Z

Wattage

1W

Max output current

0.2A

Output Type

Single

Input Voltage

24VDC

Output Voltage

5V, ±5%. max.

Input Output Isolation (VDC)

3K

Package

DIP8

Temperature range

-40°C to +85°C
