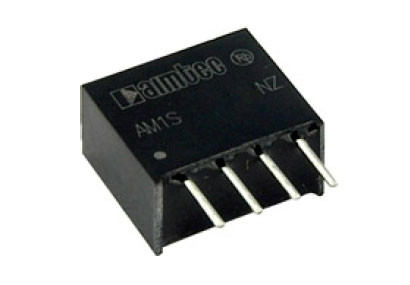

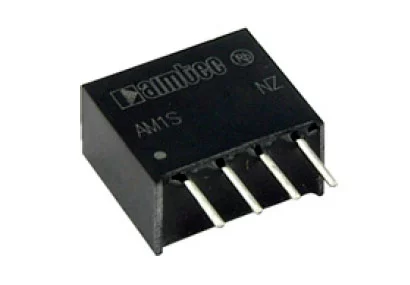

AM1S-0505SZ

Symbol Micros: UIAM1S0505sz
Contractor Symbol:
Case :
Technical drawing Add to favourites
1W DC-DC Converter, Single, Vin 5V, Vout 5V, 200mA, 1000VDC, EFF75% Replacement: FN1-05S05AN; DBE1-0511, TPE0505S; AM1SS-0505SJZ; B0505S-1WR2;
Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437
Parameters
Output current: 0,2A
Power: 1W
Input voltage: 5V
Insulation breakdown voltage: 1000V
Output voltage: 5V
Manufacturer:: AIMTEC Manufacturer part number: AM1S-0505SZ RoHS Case style: Rys.AM1SxxxxS Datasheet
In stock:
1815 pcs.
Quantity of pcs. 1+ 3+ 10+ 40+ 120+
Net price (EUR) 3,1706 2,8206 2,6111 2,4891 2,4384
Add to comparison tool
Packaging:
40
Manufacturer:: AIMTEC Manufacturer part number: AM1S-0505SZ RoHS Case style: Rys.AM1SxxxxS Datasheet
In stock:
3 pcs.
Quantity of pcs. 1+ 3+ 10+ 40+ 120+
Net price (EUR) 3,1706 2,8206 2,6111 2,4891 2,4384
Add to comparison tool
Packaging:
3
Manufacturer:: AIMTEC Manufacturer part number: AM1S-0505SZ Case style: Rys.AM1SxxxxS
External warehouse:
33 pcs.
Quantity of pcs. 1+ (Inappropriate quantity? Ask for a different one).
Net price (EUR) 2,4384
Add to comparison tool
Packaging:
40
Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.


Item in delivery
Estimated date:
2024-11-30
Quantity of pcs.: 840
Output current: 0,2A
Power: 1W
Input voltage: 5V
Insulation breakdown voltage: 1000V
Output voltage: 5V
Detailed description

Manufacturer: AIMTEC Converter type: DC/DC Power: 1W Input voltage: 5V Output voltage: 5V DC Output current: 200mA Case: SIL4 Weight: 1.8g Efficiency: 75% Operating temperature: -40°C ~ 85°C Temperature coefficient: 0.02ppm/°C Switching frequency: 80kHz Input voltage tolerance: ±10% Output voltage tolerance: ±5% Output ripple: 100Vpp Insulation voltage: 1kV DC
