DBE1-0512

Symbol Micros: UIAM1S0509sz c

109924

UIAM1S0509sz c

Contractor Symbol:

Case : Rys.AM1SxxxxS

Datasheet

Technical drawing Add to favourites

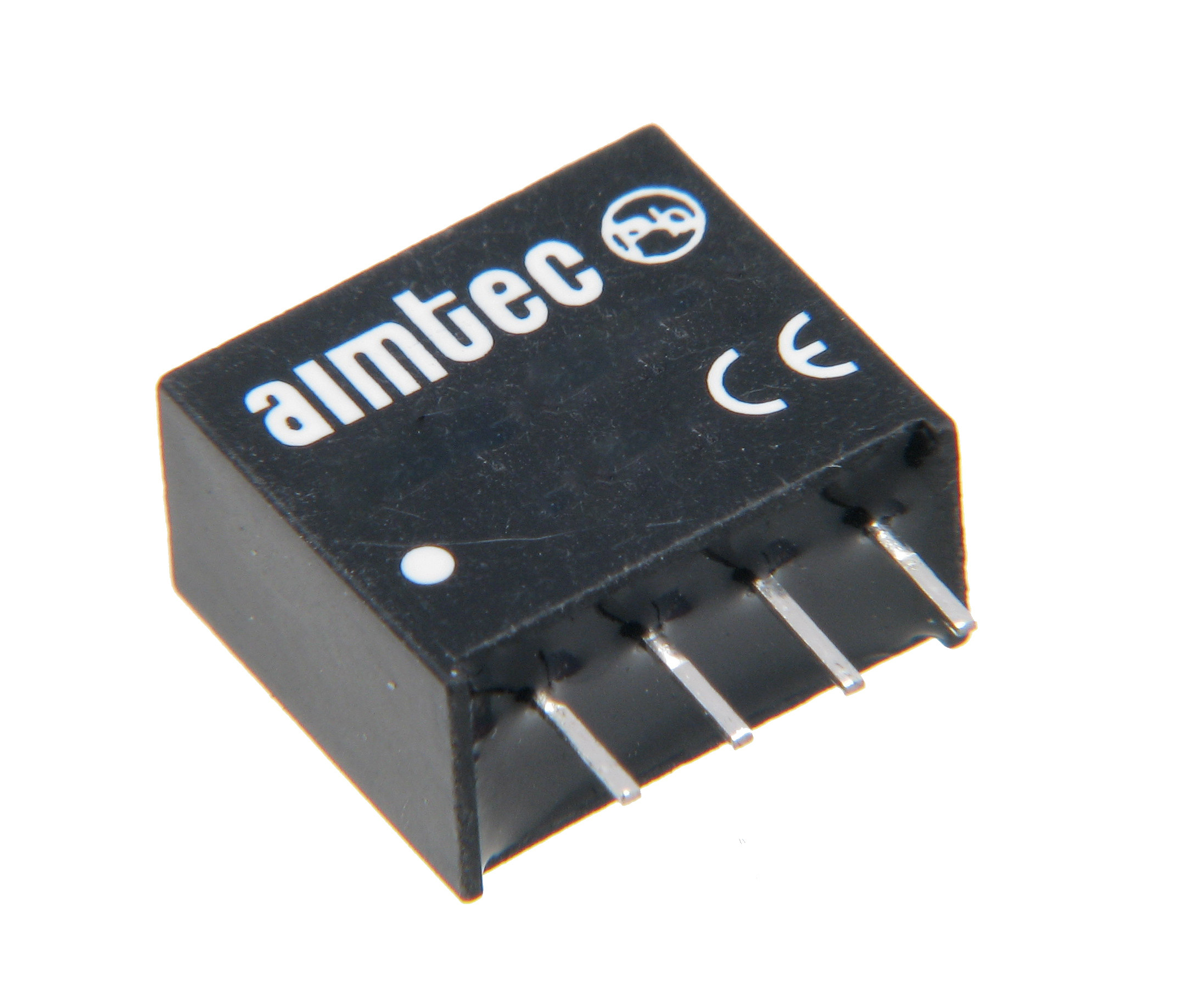

DC-DC Converter; Isolated; Single Output; 1W; 110mA; 9V; 1kV; 4,5V~5,5V; -40°C~85°C; EFF 80%; Substitute: AM1S-0509SZ Aimtec;

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Input voltage range:	4,5V ~ 5,5V
Output current:	0,11A
Output voltage range [V]:	9V
Efficiency:	80%
Power:	1W
Input voltage:	5V
Output current 1:	110mA

All parameters

Manufacturer:: PAIRUI Manufacturer part number: DBE1-0512 RoHS Case style: Rys.AM1SxxxxS Datasheet

In stock:

10 pcs.

Quantity of pcs.	1+	3+	10+	30+	100+
Net price (EUR)	2,4664	2,1211	1,9191	1,8204	1,7617

Add to comparison tool Add inquiry (RFQ)

Packaging:
10 Quantity (multiple: 1)

- +

• Parameters

Input voltage range:	4,5V ~ 5,5V
Output current:	0,11A
Output voltage range [V]:	9V
Efficiency:	80%
Power:	1W
Input voltage:	5V
Output current 1:	110mA
Output voltage:	9V
Insulation breakdown voltage:	1000V
Secondary voltage 1:	9V
