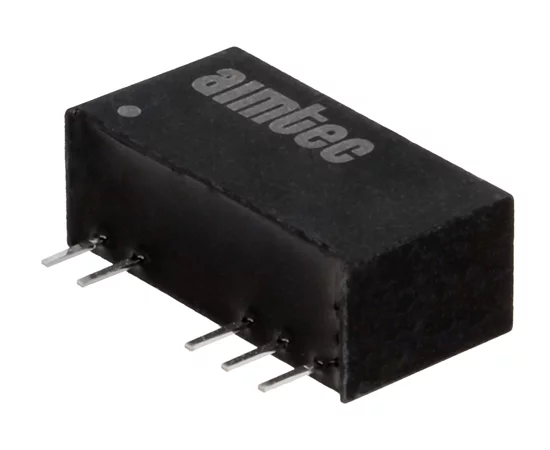

AM2D-1515DH30-RZ

Symbol Micros: UIAM2D1515dh30rz

122535

UIAM2D1515dh30rz

Contractor Symbol:

Case : Rys.AM2D-xxxxDH30-RZ

Datasheet

Add to favourites

2W DC-DC Converter; Dual; Vin 13,5V~16,5V; Vout +/-15V; +/-67mA; 3000VDC; EFF88%; Substitute: DAE2-1524F;

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Output current:	67mA
Input voltage range:	13,5V ~ 16,5V
Efficiency:	88%
Power:	2,0W
Input voltage:	14V
Insulation breakdown voltage:	3000V
Output current 1:	67mA

All parameters

Manufacturer:: PAIRUI Manufacturer part number: DAE2-1524F RoHS Case style: Rys.AM2D-xxxxDH30-RZ

In stock:

10 pcs.

Quantity of pcs.	1+	3+	10+	30+	100+
Net price (EUR)	4,5389	4,0351	3,7337	3,5819	3,4921

Add to comparison tool Add inquiry (RFQ)

Packaging:
10 Quantity (multiple: 1)

- +

• Parameters

Output current:	67mA
Input voltage range:	13,5V ~ 16,5V
Efficiency:	88%
Power:	2,0W
Input voltage:	14V
Insulation breakdown voltage:	3000V
Output current 1:	67mA
Output voltage:	15V
Output current 2:	-67mA
Secondary voltage 1:	15V
Secondary voltage 2:	-15V
