DAE2-2411

Symbol Micros: UIAM2D2405sz c

110151

UIAM2D2405sz c

Contractor Symbol:

Case : Rys.AM2D-xxxxS

Datasheet

Add to favourites

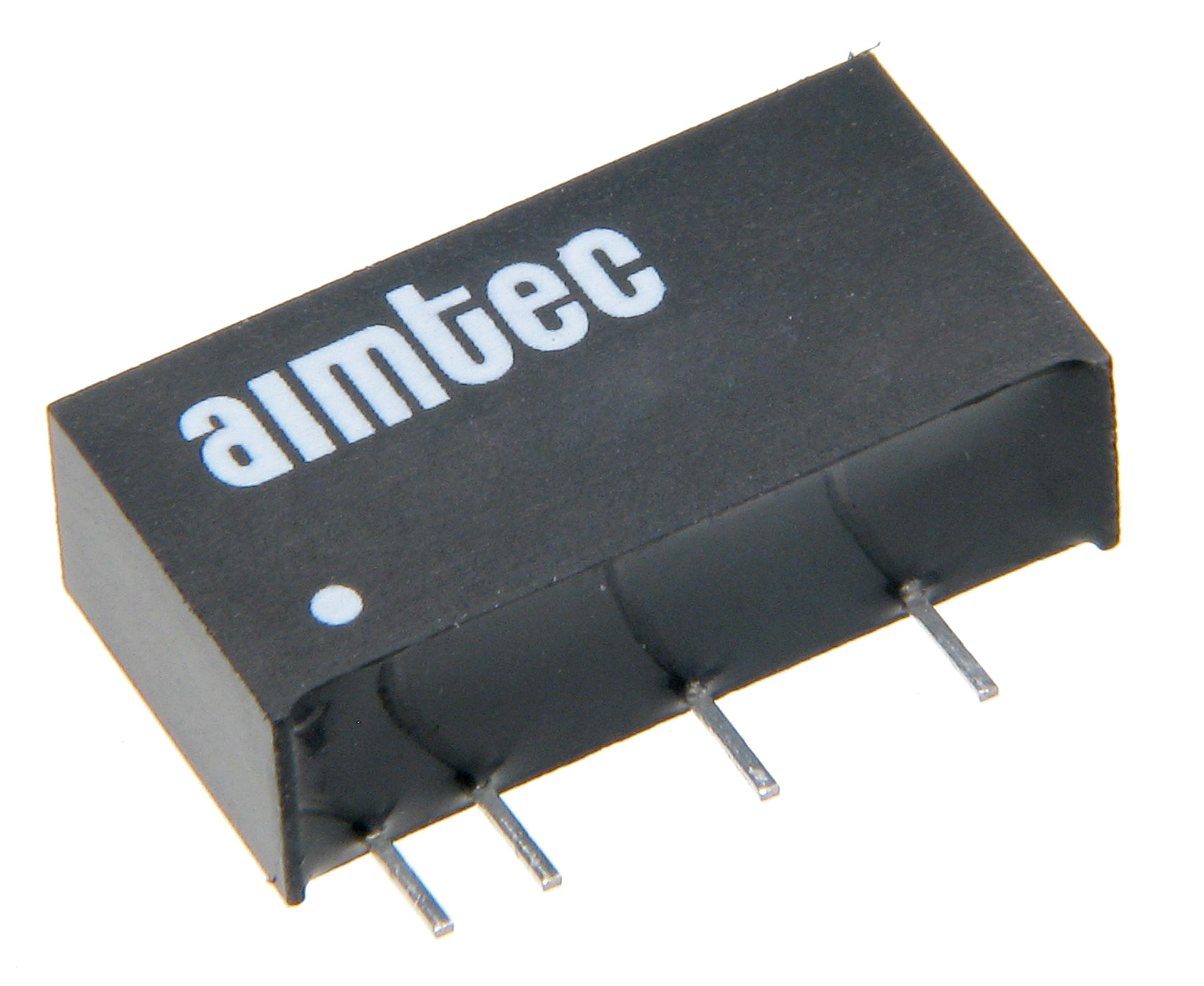

DC-DC Converter; Isolated; Single Output; 2W; 400mA; 5V; 1kV; 21,6V~26,4V; -40°C~85°C; EFF 80%; Substitute: AM2D-2405SZ;

Parameters

Input voltage range:	21,6V ~ 26,4V
Output current:	0,4A
Output voltage range [V]:	5V
Efficiency:	80%
Power:	2,0W
Input voltage:	24V
Output current 1:	400mA

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Input voltage range:	21,6V ~ 26,4V
Output current:	0,4A
Output voltage range [V]:	5V
Efficiency:	80%
Power:	2,0W
Input voltage:	24V
Output current 1:	400mA
Output voltage:	5V
Insulation breakdown voltage:	1000V
Secondary voltage 1:	5V
