BCR401R

Symbol Micros: UIBCR401r
Contractor Symbol:

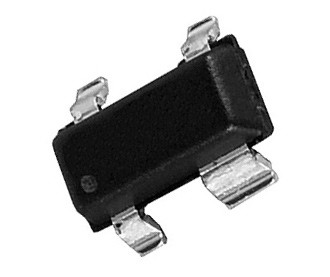

Case : SOT143R
Technical drawing Add to favourites
LED Driver, in SOT143R package, output current 10÷60mA supply voltage 1.2÷18V, max output voltage 16V, thermal protection
Manufacturer:: Infineon Manufacturer part number: BCR401RE6327 RoHS W5s. Case style: SOT143R Datasheet
In stock:
200 pcs.
Quantity of pcs. 3+ 10+ 50+ 200+ 1000+
Net price (EUR) 0,4063 0,2662 0,1908 0,1670 0,1565
Add to comparison tool
Packaging:
200
Manufacturer:: Infineon Manufacturer part number: BCR401RE6327HTSA1 Case style: SOT143R
External warehouse:
6000 pcs.
Quantity of pcs. 3000+ (Need a significantly larger quantity? Ask for price).
Net price (EUR) 0,1565
Add to comparison tool
Packaging:
3000
Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.
Manufacturer:: Infineon Manufacturer part number: BCR401RE6327HTSA1 Case style: SOT143R
External warehouse:
4000 pcs.
Quantity of pcs. 50+ (Need a significantly larger quantity? Ask for price).
Net price (EUR) 0,1565
Add to comparison tool
Packaging:
50
Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.
Detailed description

The BCR401R circuit is a relatively simple and cost-effective solution for current sources designed to drive low-power LEDs. The output current value (up to 65mA) can be adjusted using an external resistor. It is also possible to increase the output current by using an external transistor (a so-called "booster"). The low voltage drop across the controller minimizes energy losses. Additionally, the circuits feature a negative temperature coefficient – as the temperature rises, the output current decreases, protecting the LEDs from thermal overload.
