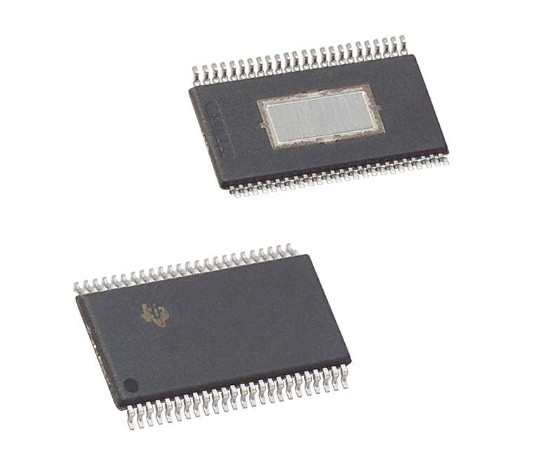

DRV8823DCA

Symbol Micros: UIDRV8823dca

111984

UIDRV8823dca

Contractor Symbol:

Case : HTSSOP48

Datasheet

Add to favourites

Quad Brushed/Dual Bipolar Stepper Motor Driver; 1,5A Peak; 8V~32V; -40°C ~ 85°C;

Parameters

Supply voltage range:	8V~32V
Case:	HTSSOP48
Current:	1,5A
Manufacturer:	Texas Instruments
Integrated circuit type:	Driver
Operating temperature (range):	-40°C ~ 85°C
Number of channels:	2

All parameters

Manufacturer:: Texas Instruments Manufacturer part number: DRV8823DCA RoHS Case style: HTSSOP48 Datasheet

In stock:

9 pcs.

Quantity of pcs.	1+	3+	10+	30+	100+
Net price (EUR)	4,1365	3,6766	3,4007	3,2639	3,1814

Add to comparison tool Add inquiry (RFQ)

Packaging:
10 Quantity (multiple: 1)

- +

• Parameters

Supply voltage range:	8V~32V
Case:	HTSSOP48
Current:	1,5A
Manufacturer:	Texas Instruments
Integrated circuit type:	Driver
Operating temperature (range):	-40°C ~ 85°C
Number of channels:	2
