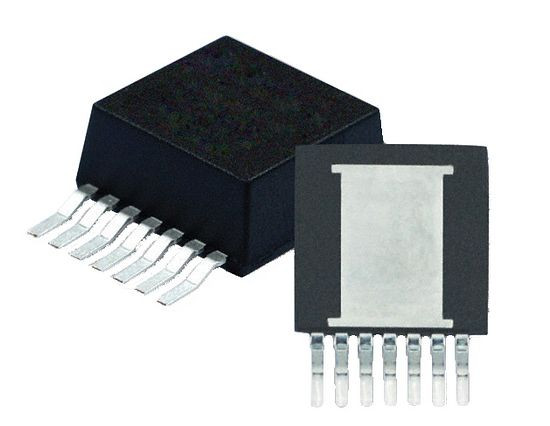

LMZ22005TZ

Symbol Micros: UILMZ22005tz

113055

UILMZ22005tz

Contractor Symbol:

Case : TO-PMOD-7

Datasheet

Add to favourites

Simple Switcher Power Module, 5A, Vin 6÷20V, Vout 0.8÷6V, -40÷125°C

Parameters

Manufacturer:	NSC
Integrated circuit type:	Switching regulator
Input voltage range:	6V ~ 20V
Mounting:	SMD
Case:	TO-PMOD-7
Dimensions:	10.16x9.85x4.57mm
Operating temperature (range):	-40°C ~ 125°C

All parameters

Manufacturer:: NSC Manufacturer part number: LMZ22005TZX RoHS Case style: TO-PMOD-7 t/r

In stock:

2 pcs.

Quantity of pcs.	1+	3+	10+	20+	40+
Net price (EUR)	10,6344	10,0746	9,7196	9,5886	9,4957

Add to comparison tool Add inquiry (RFQ)

Packaging:
40 Quantity (multiple: 1)

- +

• Parameters

Manufacturer:	NSC
Integrated circuit type:	Switching regulator
Input voltage range:	6V ~ 20V
Mounting:	SMD
Case:	TO-PMOD-7
Dimensions:	10.16x9.85x4.57mm
Operating temperature (range):	-40°C ~ 125°C
