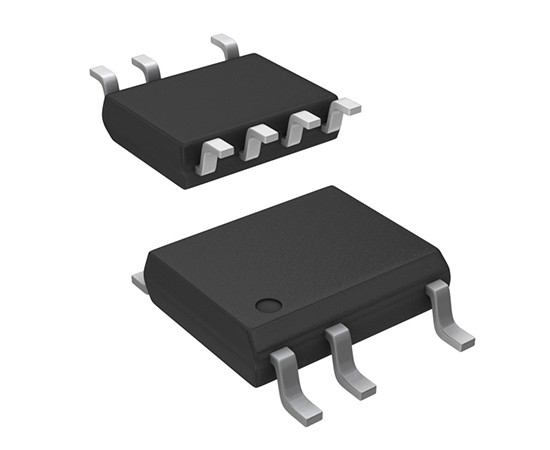

LNK304DG

Symbol Micros: UILNK304dg

312076

UILNK304dg

Contractor Symbol:

Case : SOP08C t/r

Datasheet

Add to favourites

Converter Offline Buck, Buck-Boost, Flyback Topology 66kHz SO-8C LNK304DG-TL

Parameters

Manufacturer:	Power Integrations
Integrated circuit type:	AC/DC converter
Input voltage range:	70V
Mounting:	SMD
Case:	SOP08C t/r
Dimensions:	4,9x3,9x1,5mm
Operating temperature (range):	-40°C ~ 150°C

All parameters

Manufacturer:: Power Integrations Manufacturer part number: LNK304DG RoHS Case style: SOP08C t/r Datasheet

In stock:

87 pcs.

Quantity of pcs.	1+	5+	20+	100+	400+
Net price (EUR)	1,5467	1,0822	0,9194	0,8428	0,8141

Add to comparison tool Add inquiry (RFQ)

Packaging:
500 Quantity (multiple: 1)

- +

Manufacturer:: Power Integrations Manufacturer part number: LNK304DG-TL Case style: SOP08C t/r

External warehouse:

5000 pcs.

Quantity of pcs.	2500+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,8141

Add to comparison tool Add inquiry (RFQ)

Packaging:
2500

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Manufacturer:	Power Integrations
Integrated circuit type:	AC/DC converter
Input voltage range:	70V
Mounting:	SMD
Case:	SOP08C t/r
Dimensions:	4,9x3,9x1,5mm
Operating temperature (range):	-40°C ~ 150°C
