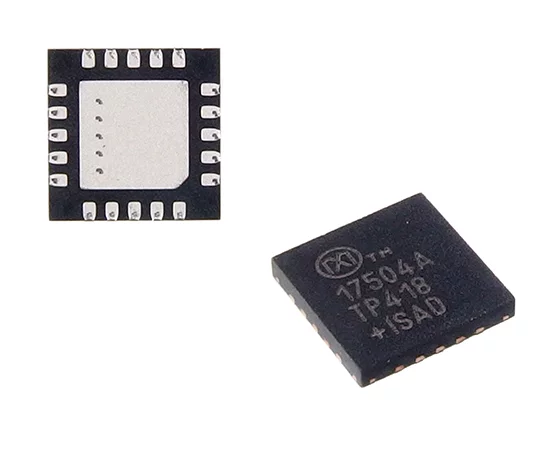

MAX17504ATP+ TQFN20(5x5)

Symbol Micros: UIMAX17504atp

88477

UIMAX17504atp

Contractor Symbol:

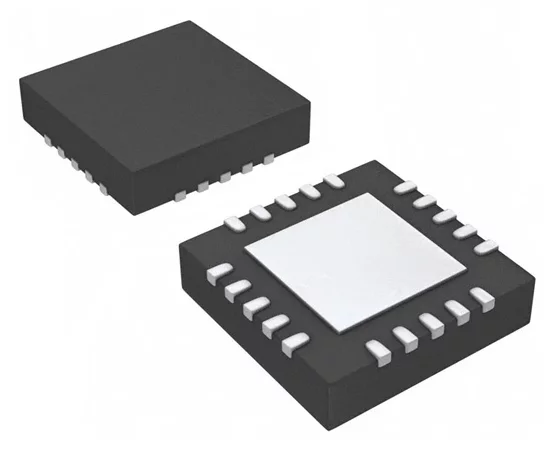

Case : TQFN20(5x5) /WQFN20

Datasheet

Technical drawing Add to favourites

Step-Down DC-DC Converter, 3.5A, Vin 4.5÷60V, Vout Adj, 200kHz÷2.2MHz

Parameters

Manufacturer:	Maxim
Integrated circuit type:	DC/DC Converter
Input voltage range:	4,5~60V
Mounting:	SMD
Case:	TQFN20(5x5) /WQFN20
Dimensions:	5x5mm
Operating temperature (range):	-40°C ~ 125°C

All parameters

Manufacturer:: Maxim Manufacturer part number: MAX17504ATP+T RoHS Case style: TQFN20(5x5) /WQFN20 Datasheet

In stock:

24 pcs.

Quantity of pcs.	1+	3+	10+	50+	200+
Net price (EUR)	4,2039	3,7506	3,4786	3,3021	3,2329

Add to comparison tool Add inquiry (RFQ)

Packaging:
50 Quantity (multiple: 1)

- +

Manufacturer:: Maxim Manufacturer part number: MAX17504ATP+ Case style: TQFN20(5x5) /WQFN20

External warehouse:

145 pcs.

Quantity of pcs.	5+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	3,2329

Add to comparison tool Add inquiry (RFQ)

Packaging:
5

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Manufacturer:	Maxim
Integrated circuit type:	DC/DC Converter
Input voltage range:	4,5~60V
Mounting:	SMD
Case:	TQFN20(5x5) /WQFN20
Dimensions:	5x5mm
Operating temperature (range):	-40°C ~ 125°C
