MBI1801GSD

Symbol Micros: UIMBI1801gsd

36288

UIMBI1801gsd

Contractor Symbol:

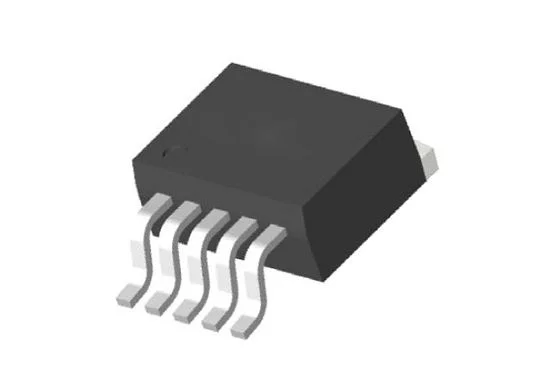

Case : TO265

Datasheet

Technical drawing Add to favourites

Linear LED Driver for High Power LED, PWM Dimming 1 channel, Iout 50÷1200mA, Vds 17V max, Vdd 4.5÷5.5V, -40÷85°C

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Controller type:	On/Off
Driver application:	High power LED
Number of channels:	1
Output current / canal [mA]:	5mA ~ 1200mA
Output voltage:	17V
Supply voltage range:	4,5V ~ 5,5V
Operating temperature (range):	-40°C ~ 85°C

All parameters

Manufacturer:: MACROBLOK Manufacturer part number: MBI1801GSD RoHS Case style: TO265 Datasheet

In stock:

0 pcs.

Quantity of pcs.	1+	3+	10+	50+	200+
Net price (EUR)	3,1136	2,7778	2,5759	2,4468	2,3951

Add to comparison tool Add inquiry (RFQ)

Packaging:
36 Quantity (multiple: 1)

- +

Manufacturer:: MACROBLOK Manufacturer part number: MBI1801GSD-A RoHS Case style: TO265 Datasheet

In stock:

100 pcs.

Quantity of pcs.	1+	3+	10+	50+	200+
Net price (EUR)	3,1136	2,7778	2,5759	2,4468	2,3951

Add to comparison tool Add inquiry (RFQ)

Packaging:
200 Quantity (multiple: 1)

- +

• Parameters

Controller type:	On/Off
Driver application:	High power LED
Number of channels:	1
Output current / canal [mA]:	5mA ~ 1200mA
Output voltage:	17V
Supply voltage range:	4,5V ~ 5,5V
Operating temperature (range):	-40°C ~ 85°C
Case:	TO265
