MBI1838GTS

Symbol Micros: UIMBI1838gts

60459

UIMBI1838gts

Contractor Symbol:

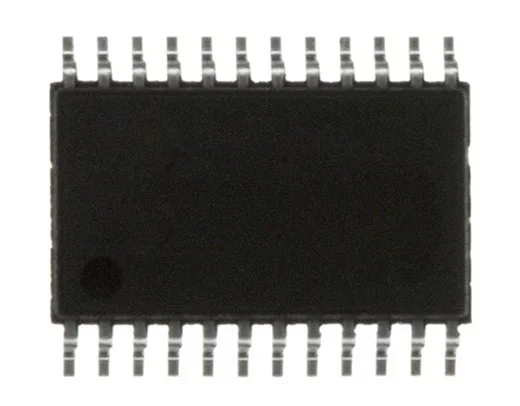

Case : HTSSOP24

Datasheet

Technical drawing Add to favourites

Linear LED Backlighting Driver, PWM Dimming, Error Detection 8 channels, Iout 15÷80mA, Vds 70V max, Vdd 8÷40V, -40÷85°C

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Controller type:	On/Off
Driver application:	LED Backlight
Brightness control:	PWM
Error detection:	YES
Number of channels:	8
Output current / canal [mA]:	15mA ~ 80mA
Output voltage:	70V

All parameters

Manufacturer:: MACROBLOK Manufacturer part number: MBI1838GTS RoHS Case style: HTSSOP24 Datasheet

In stock:

20 pcs.

Quantity of pcs.	1+	5+	20+	100+	300+
Net price (EUR)	1,5911	1,1811	1,0320	0,9598	0,9365

Add to comparison tool Add inquiry (RFQ)

Packaging:
20 Quantity (multiple: 1)

- +

• Parameters

Controller type:	On/Off
Driver application:	LED Backlight
Brightness control:	PWM
Error detection:	YES
Number of channels:	8
Output current / canal [mA]:	15mA ~ 80mA
Output voltage:	70V
Supply voltage range:	8V ~ 40V
Operating temperature (range):	-40°C ~ 85°C
Case:	HTSSOP24
