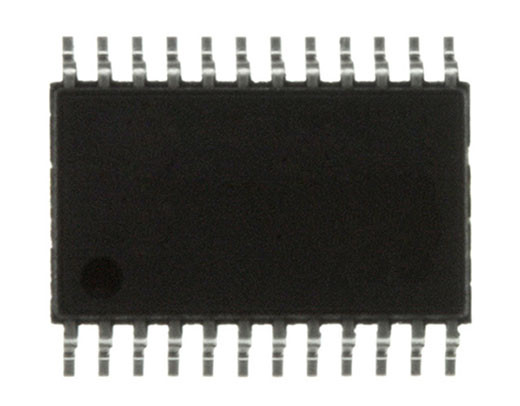

MBI5042GTS

Symbol Micros: UIMBI5042gts

65264

UIMBI5042gts

Contractor Symbol:

Case : HTSSOP24

Datasheet

Technical drawing Add to favourites

LED Display Driver, 16-bit PWM Control, Programmable Current Gain 16 channels, Iout 2÷45mA @ 5V, Vds 17V max, fCLK 30MHz, Vdd 3.0÷5.5V, -40÷85°C

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Controller type:	FIFO register
Driver application:	LED Matrix
Brightness control:	PWM 16-bit
Programmable current gain:	YES
Number of channels:	16
Output current / canal [mA]:	2mA ~ 45mA @ 5V
Output voltage:	17V

All parameters

Manufacturer:: MACROBLOK Manufacturer part number: MBI5042GTS RoHS Case style: HTSSOP24 Datasheet

In stock:

50 pcs.

Quantity of pcs.	2+	10+	50+	200+	1000+
Net price (EUR)	0,7235	0,4580	0,3617	0,3289	0,3148

Add to comparison tool Add inquiry (RFQ)

Packaging:
50 Quantity (multiple: 1)

- +

• Parameters

Controller type:	FIFO register
Driver application:	LED Matrix
Brightness control:	PWM 16-bit
Programmable current gain:	YES
Number of channels:	16
Output current / canal [mA]:	2mA ~ 45mA @ 5V
Output voltage:	17V
Supply voltage range:	3V ~ 5,5V
Operating temperature (range):	-40°C ~ 85°C
Case:	HTSSOP24
