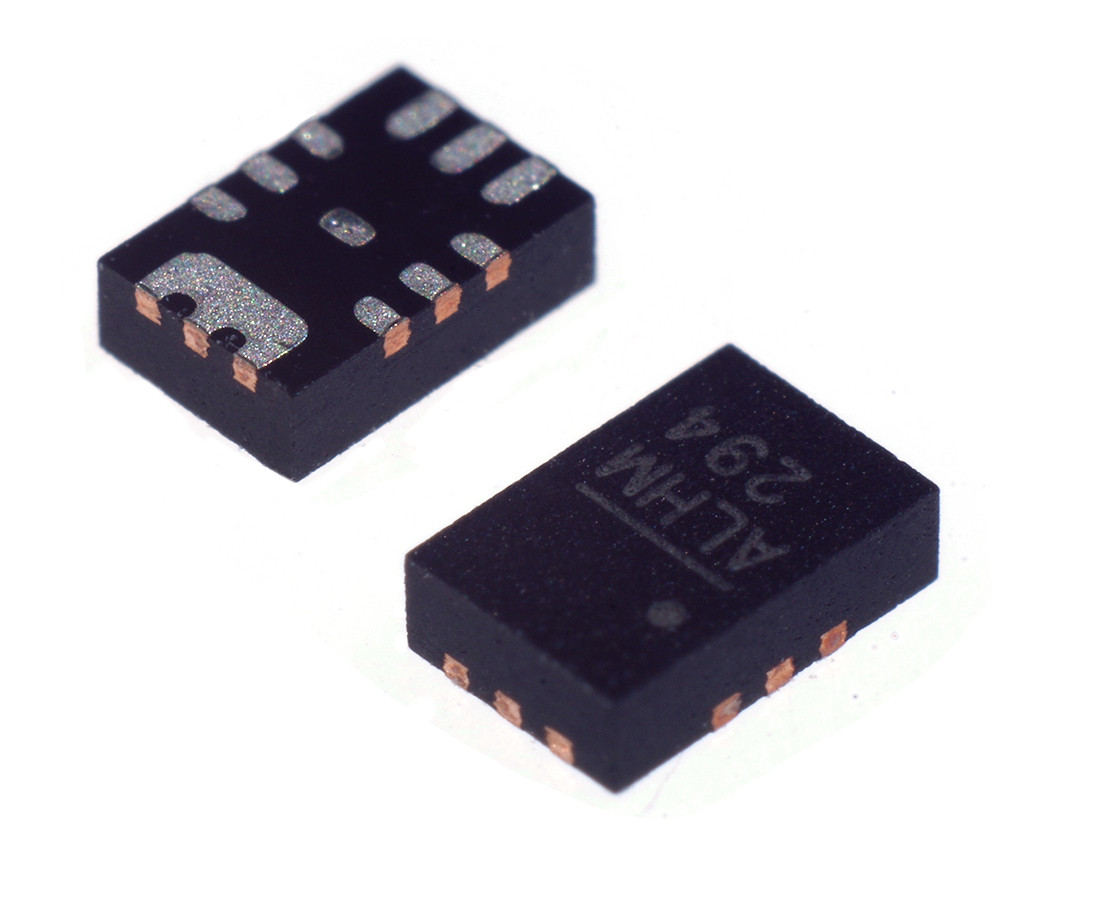

MP2147GD-Z

Symbol Micros: UIMP2147gd

271410

UIMP2147gd

Contractor Symbol:

Case : QFN12(3x2)

Datasheet

Technical drawing Add to favourites

Synchronous Step-Down Switching Regulator, 4A, Vin 2.8÷5.5V, Vout 0.6÷5.5V, 1.2MHz MP2147GD-P

Parameters

Manufacturer:	MPS
Integrated circuit type:	Switching regulator
Input voltage range:	2.8V ~ 5.5V
Mounting:	SMD
Case:	QFN12(3x2)
Dimensions:	3.0x2.0x0.8mm
Operating temperature (range):	-40°C ~ 85°C

All parameters

Manufacturer:: MPS Monolithic Power Systems Manufacturer part number: MP2147GD-Z RoHS Case style: QFN12(3x2) Datasheet

In stock:

47 pcs.

Quantity of pcs.	1+	3+	10+	50+	200+
Net price (EUR)	2,4636	2,1306	1,9327	1,8069	1,7604

Add to comparison tool Add inquiry (RFQ)

Packaging:
50 Quantity (multiple: 1)

- +

• Parameters

Manufacturer:	MPS
Integrated circuit type:	Switching regulator
Input voltage range:	2.8V ~ 5.5V
Mounting:	SMD
Case:	QFN12(3x2)
Dimensions:	3.0x2.0x0.8mm
Operating temperature (range):	-40°C ~ 85°C
