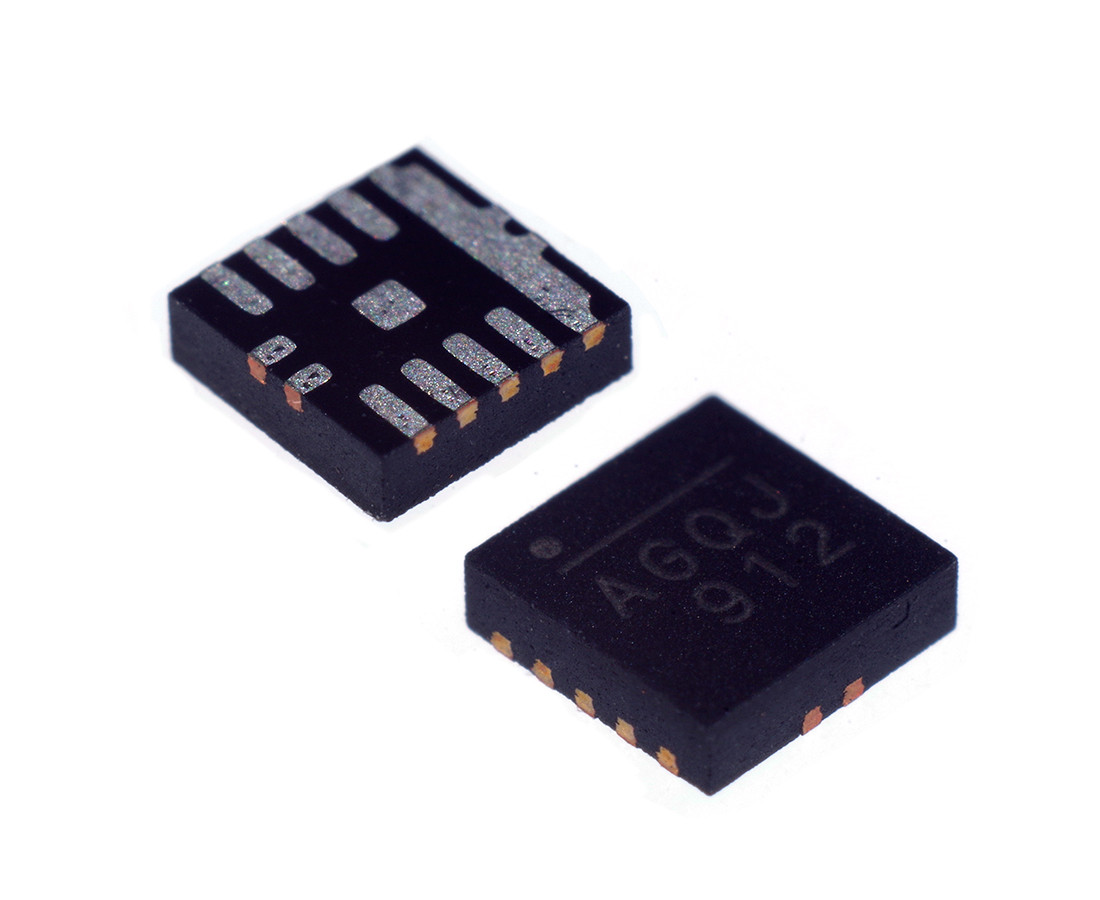

MP2229GQ-Z

Symbol Micros: UIMP2229gq

271447

UIMP2229gq

Contractor Symbol:

Case : QFN14(3x3)

Datasheet

Add to favourites

Synchronous Step-Down Switching Regulator, 6A, Vin 4.5÷21V, Vout ADJ, 0.3÷2MHz MP2229GQ-P

Parameters

Manufacturer:	MPS
Integrated circuit type:	Switching regulator
Input voltage range:	4.5V ~ 21V
Mounting:	SMD
Case:	QFN14(3x3)
Dimensions:	3.0x3.0x1.0mm
Operating temperature (range):	-40°C ~ 125°C

All parameters

Manufacturer:: MPS Monolithic Power Systems Manufacturer part number: MP2229GQ-Z RoHS Case style: QFN14(3x3) Datasheet

In stock:

48 pcs.

Quantity of pcs.	1+	3+	10+	49+	196+
Net price (EUR)	1,4770	1,1270	0,9327	0,8176	0,7769

Add to comparison tool Add inquiry (RFQ)

Packaging:
49 Quantity (multiple: 1)

- +

• Parameters

Manufacturer:	MPS
Integrated circuit type:	Switching regulator
Input voltage range:	4.5V ~ 21V
Mounting:	SMD
Case:	QFN14(3x3)
Dimensions:	3.0x3.0x1.0mm
Operating temperature (range):	-40°C ~ 125°C
