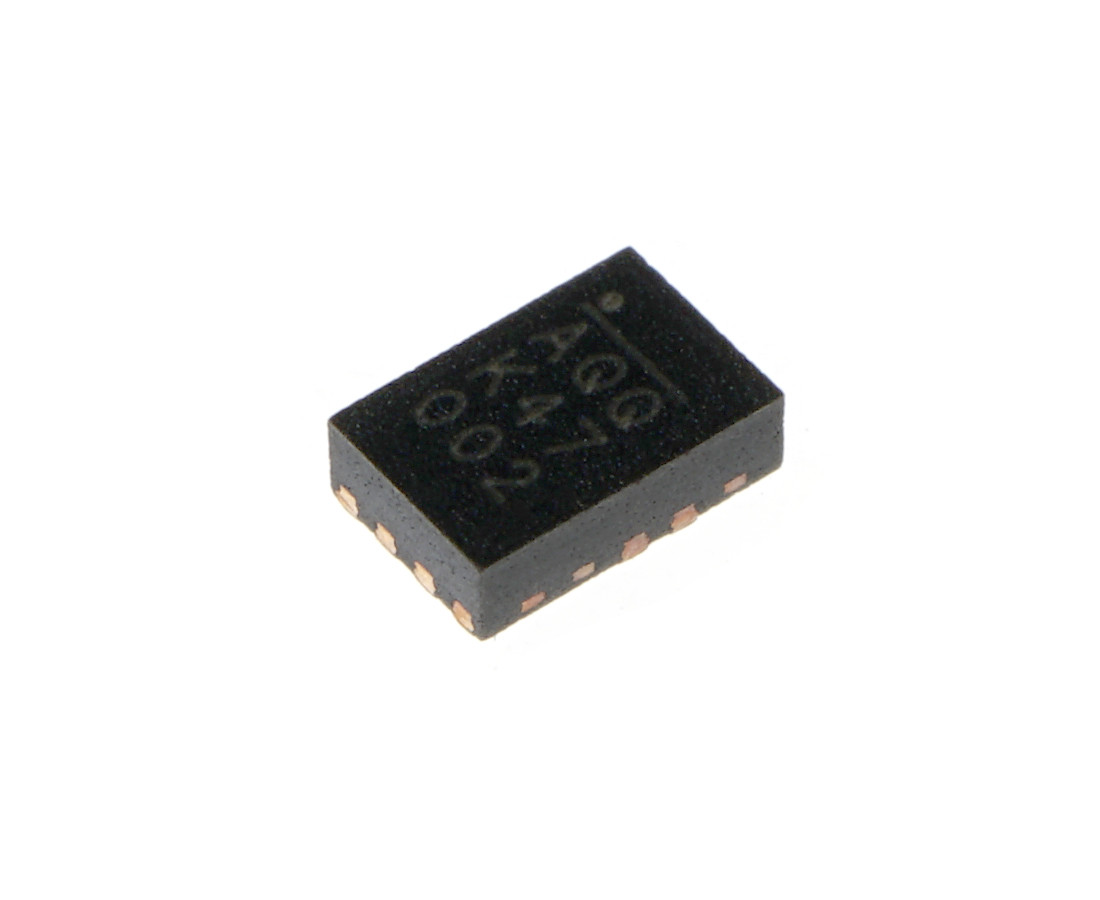

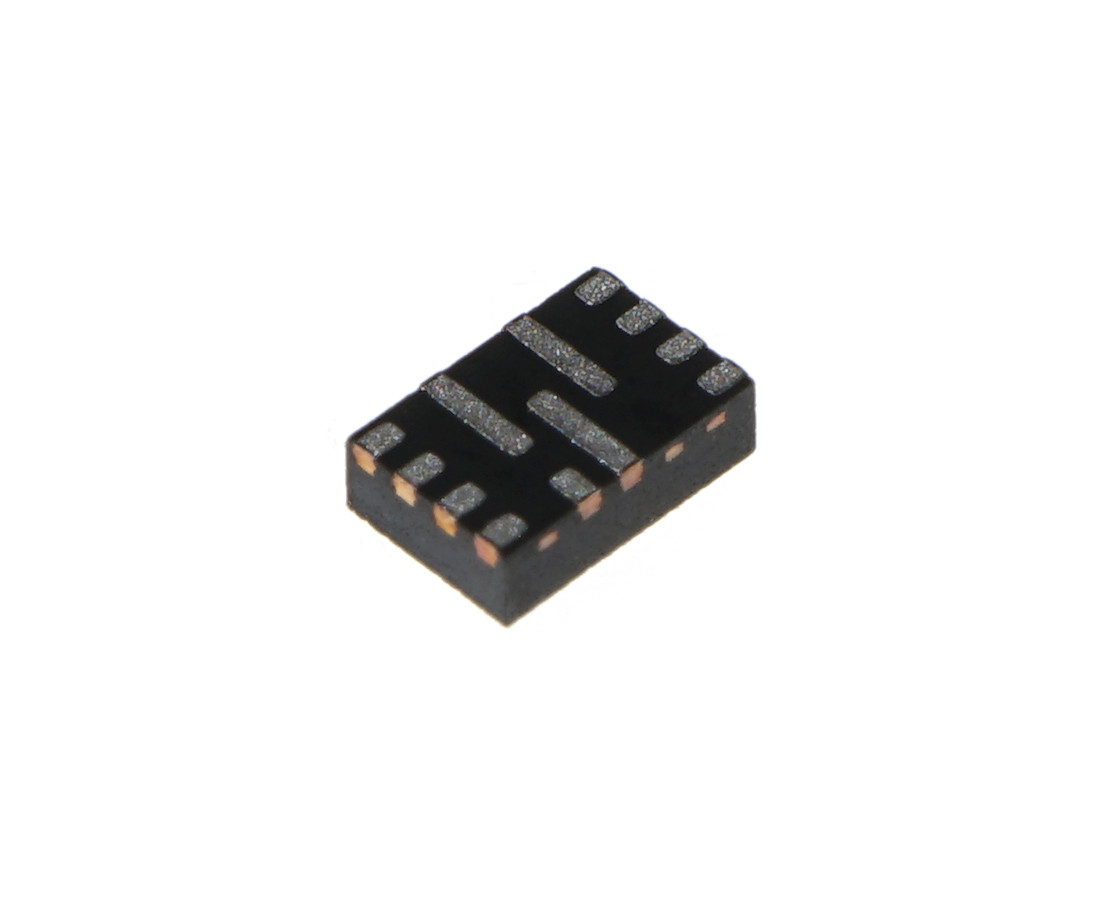

MP8759GD-Z

Symbol Micros: UIMP8759gd

272143

UIMP8759gd

Contractor Symbol:

Case : QFN12A(3x2)

Datasheet

Technical drawing Add to favourites

Synchronous Step-Down Switching Regulator, 8A, Vin 4.5÷26V, Vout 0.6÷5.5V, 0.7MHz MP8759GD-P

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Manufacturer:	MPS
Integrated circuit type:	Switching regulator
Input voltage range:	4.5V ~ 26V
Mounting:	SMD
Case:	QFN12(3x2)
Dimensions:	3.0x2.0x1.0mm
Operating temperature (range):	-40°C ~ 125°C

All parameters

Manufacturer:: MPS Manufacturer part number: MP8759GD-Z RoHS AQQ.. Case style: QFN12(3x2) Datasheet

In stock:

46 pcs.

Quantity of pcs.	1+	3+	10+	50+	200+
Net price (EUR)	1,7207	1,3737	1,1745	1,0549	1,0127

Add to comparison tool Add inquiry (RFQ)

Packaging:
50 Quantity (multiple: 1)

- +

• Parameters

Manufacturer:	MPS
Integrated circuit type:	Switching regulator
Input voltage range:	4.5V ~ 26V
Mounting:	SMD
Case:	QFN12(3x2)
Dimensions:	3.0x2.0x1.0mm
Operating temperature (range):	-40°C ~ 125°C
