NCP1529MUTBG ON Semiconductors

Symbol Micros: UINCP1529mutbg

105755

UINCP1529mutbg

Contractor Symbol:

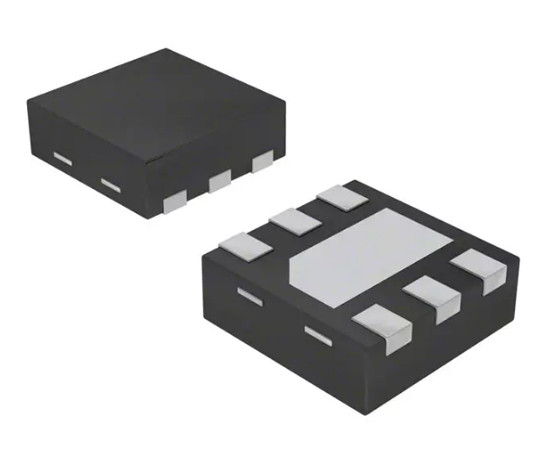

Case : uDFN06

Datasheet

Technical drawing Add to favourites

Step-Down DC-DC Converter, 1A, Vin 2.7÷5.5V, Vout 0.9÷3.9V, 1.7MHz

Parameters

Manufacturer:	ON SEMICONDUCTOR
Integrated circuit type:	DC/DC Converter
Input voltage range:	2,7~5,5V
Mounting:	SMD
Case:	uDFN06
Dimensions:	2,05x2,05x0,8mm
Operating temperature (range):	-40°C ~ 85°C

All parameters

Manufacturer:: ON-Semicoductor Manufacturer part number: NCP1529MUTBG Pbf Case style: uDFN06 Datasheet

In stock:

60 pcs.

Quantity of pcs.	1+	3+	10+	30+	100+
Net price (EUR)	4,7702	4,0163	3,5625	3,3368	3,2019

Add to comparison tool Add inquiry (RFQ)

Packaging:
300 Quantity (multiple: 1)

- +

Manufacturer:: ON-Semicoductor Manufacturer part number: NCP1529MUTBG Case style: uDFN06

External warehouse:

65000 pcs.

Quantity of pcs.	3000+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	3,2019

Add to comparison tool Add inquiry (RFQ)

Packaging:
3000

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Manufacturer:	ON SEMICONDUCTOR
Integrated circuit type:	DC/DC Converter
Input voltage range:	2,7~5,5V
Mounting:	SMD
Case:	uDFN06
Dimensions:	2,05x2,05x0,8mm
Operating temperature (range):	-40°C ~ 85°C
