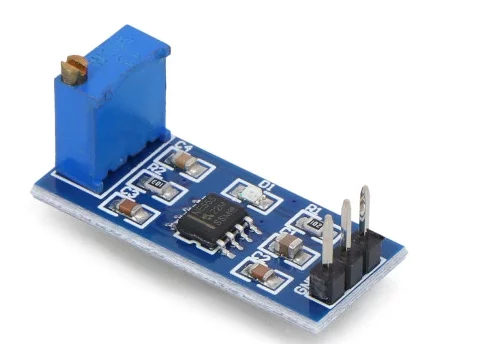

NE555 module - adjustable frequency generator

Symbol Micros: UINE555

502138

UINE555

Contractor Symbol:

Case : Rys.UINE555

Datasheet

Add to favourites

Adjustable frequency generator; dimensions: 30x13mm Output: analog signal; voltage 5-12V; duty cycle: minimum: 50% of the cycle - 3.7 Hz, maximum: 98% of the cycle - 1.3 kHz

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Integrated circuit type:	Regulowany generator częstotliwości
Number of transceivers:	1
Duplex system:	N/A
Supply voltage range:	5V ~ 12V
Operating temperature (range):	-40°C ~ 85°C

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Integrated circuit type:	Regulowany generator częstotliwości
Number of transceivers:	1
Duplex system:	N/A
Supply voltage range:	5V ~ 12V
Operating temperature (range):	-40°C ~ 85°C
