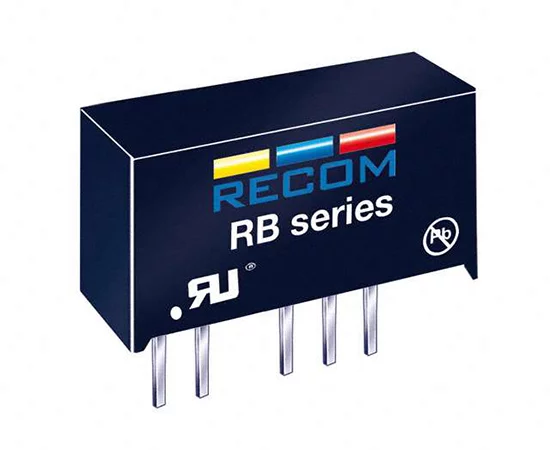

RB-1512D

Symbol Micros: UIRB-1512D

188102

UIRB-1512D

Contractor Symbol:

Case : Rys.DC THT 7SIP,5Leads (19.7x6.0x10.2mm)

Datasheet

Technical drawing Add to favourites

Module DC-DC; 2-OUT; 12V/-12V; 42mA; 1W; 1kV; 13,5V~16,5V; -40°C~85°C; EFF 82%; 19.7mm x 6.0mm x 10.2mm;

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Input voltage range:	13,5V ~ 16,5V
Output current:	42mA
Output voltage range [V]:	12V
Efficiency:	82%
Power:	1W
Input voltage:	16V
Output current 1:	42mA

All parameters

Manufacturer:: RECOM Manufacturer part number: RB-1512D RoHS Case style: Rys.DC THT 7SIP,5Leads (19.7x6.0x10.2mm) Datasheet

In stock:

2 pcs.

Quantity of pcs.	1+	2+
Net price (EUR)	7,8173	6,7979

Add to comparison tool Add inquiry (RFQ)

Packaging:
2 Quantity (multiple: 1)

- +

• Parameters

Input voltage range:	13,5V ~ 16,5V
Output current:	42mA
Output voltage range [V]:	12V
Efficiency:	82%
Power:	1W
Input voltage:	16V
Output current 1:	42mA
Output voltage:	12V
Insulation breakdown voltage:	1000V
Secondary voltage 1:	12V
Secondary voltage 2:	-12V
Symetric output votage:	+/-12V
