SCM1316AFA

Symbol Micros: UISCM1316afa

318210

UISCM1316afa

Contractor Symbol:

Case : QFN20(5x5)

Datasheet

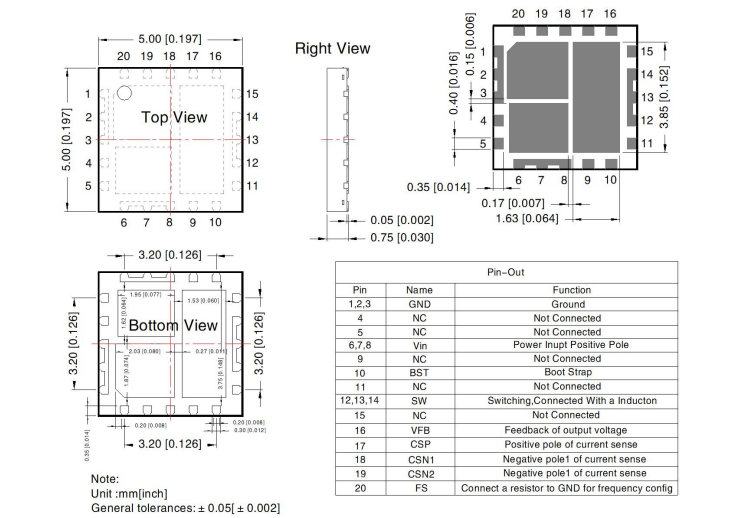

Technical drawing Add to favourites

Synchronous Step-Down Switching Regulator; 6A, Vin 7÷38V, Vout ADJ, 300kHz, -40°C ~ 150°C; Replacement for: TPS56637; LM73605; LM73606; LM61460; LM2647;

Parameters

Manufacturer:	Mornsun
Integrated circuit type:	Switching regulator
Input voltage range:	7V~38V
Mounting:	SMD
Case:	QFN20(5x5)
Dimensions:	5x5x0,75mm
Operating temperature (range):	-40°C ~ 150°C

All parameters

Manufacturer:: MORNSUN - EOL Manufacturer part number: SCM1316AFA RoHS Case style: QFN20(5x5)

In stock:

30 pcs.

Quantity of pcs.	1+	5+	30+	150+	300+
Net price (EUR)	1,5132	1,1209	0,9574	0,9014	0,8897

Add to comparison tool Add inquiry (RFQ)

Stock available
Until stock lasts Packaging:
30 Quantity (multiple: 1)

- +

• Parameters

Manufacturer:	Mornsun
Integrated circuit type:	Switching regulator
Input voltage range:	7V~38V
Mounting:	SMD
Case:	QFN20(5x5)
Dimensions:	5x5x0,75mm
Operating temperature (range):	-40°C ~ 150°C
