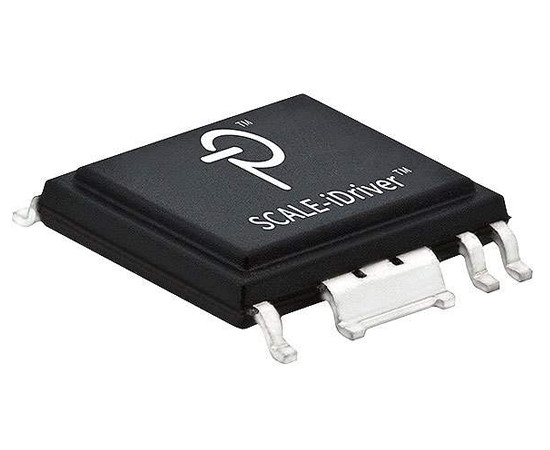

SID1102K-TL

Symbol Micros: UISID1102k

125276

UISID1102k

Contractor Symbol:

Case : eSOP-R16B

Datasheet

Add to favourites

Gate Driver Magnetic Coupling; 1000Vrms; 1 Channel; 100kV/us; 29ns, 14ns; 5A; 1,79W; 75kHz; 22V~28V; -40°C~125°C;

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Propagation time:	14ns
Case:	eSOP-R16B
Nominal voltage:	22V ~ 28V
Channel configuration:	2/1
Manufacturer:	Power Integrations
Insulation breakdown voltage:	1000V
Number of channels:	1

All parameters

Manufacturer:: Power Integrations Manufacturer part number: SID1102K-TL RoHS Case style: eSOP-R16B Datasheet

In stock:

10 pcs.

Quantity of pcs.	1+	3+	10+	30+	100+
Net price (EUR)	4,0364	3,3969	3,0146	2,8246	2,7087

Add to comparison tool Add inquiry (RFQ)

Packaging:
10 Quantity (multiple: 1)

- +

• Parameters

Propagation time:	14ns
Case:	eSOP-R16B
Nominal voltage:	22V ~ 28V
Channel configuration:	2/1
Manufacturer:	Power Integrations
Insulation breakdown voltage:	1000V
Number of channels:	1
Operating temperature (range):	-40°C ~ 125°C
