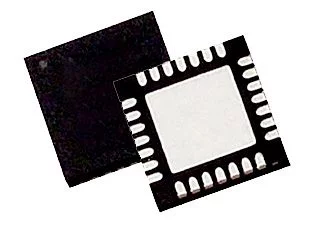

TMC2224-LA

Symbol Micros: UITMC2224la

275700

UITMC2224la

Contractor Symbol:

Case : QFN-28S(5x5-0.5)

Datasheet

Technical drawing Add to favourites

Stepper Motor Driver w/ STEP/DIR/UART Interface; 2A Peak; 5,5V~36V; -40°C ~ 125°C; Equivalent: TMC2224-LA-T;

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Supply voltage range:	5,5V~36V
Case:	QFN-28S(5x5-0.5)
Current:	2A
Manufacturer:	Trinamic
Integrated circuit type:	Driver
Operating temperature (range):	-40°C ~ 125°C
Number of channels:	4

All parameters

Manufacturer:: TRINAMIC Manufacturer part number: TMC2224-LA-T RoHS Case style: QFN-28S(5x5-0.5) Datasheet

In stock:

4 pcs.

Quantity of pcs.	1+	3+	10+	30+	100+
Net price (EUR)	3,1118	2,6767	2,4203	2,2957	2,2227

Add to comparison tool Add inquiry (RFQ)

Packaging:
10 Quantity (multiple: 1)

- +

• Parameters

Supply voltage range:	5,5V~36V
Case:	QFN-28S(5x5-0.5)
Current:	2A
Manufacturer:	Trinamic
Integrated circuit type:	Driver
Operating temperature (range):	-40°C ~ 125°C
Number of channels:	4
