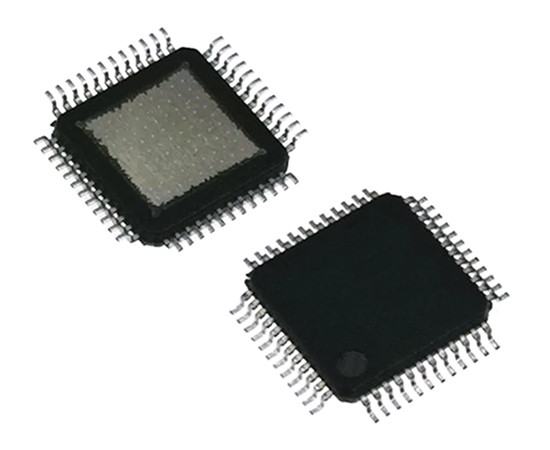

TMC5160A-TA

Symbol Micros: UITMC5160ata

347326

UITMC5160ata

Contractor Symbol:

Case : HTQFP48

Datasheet

Technical drawing Add to favourites

Stepper Motor Driver w/ STEP/DIR/UART/SPI Interface; 20A; 10V~55V; -40°C ~ 125°C; Equivalent: TMC5160A-TA-T;

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Supply voltage range:	10V~55V
Case:	HTQFP48
Current:	20A
Manufacturer:	Trinamic
Integrated circuit type:	Driver
Operating temperature (range):	-40°C ~ 125°C
Number of channels:	4

All parameters

Manufacturer:: TRINAMIC Manufacturer part number: TMC5160A-TA-T RoHS Case style: HTQFP48 Datasheet

In stock:

7 pcs.

Quantity of pcs.	1+	3+	10+	20+	50+
Net price (EUR)	8,1261	7,6086	7,2846	7,1680	7,0654

Add to comparison tool Add inquiry (RFQ)

Packaging:
10 Quantity (multiple: 1)

- +

• Parameters

Supply voltage range:	10V~55V
Case:	HTQFP48
Current:	20A
Manufacturer:	Trinamic
Integrated circuit type:	Driver
Operating temperature (range):	-40°C ~ 125°C
Number of channels:	4
