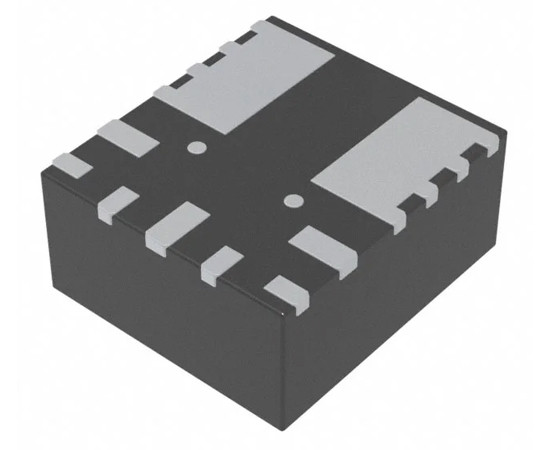

TPSM84209RKHT

Symbol Micros: UITPSM84209rkh

214041

UITPSM84209rkh

Contractor Symbol:

Case : QFN-FCMOD9

Datasheet

Add to favourites

Synchronous Step-Down Converter Module, 2.5A, Vin 4.5÷28V, Vout 1.2÷6V, 0.75MHz TPSM84209RKHR

Parameters

Manufacturer:	Texas Instruments
Integrated circuit type:	Switching regulator
Input voltage range:	4.5V ~ 28V
Mounting:	SMD
Case:	QFN-FCMOD9
Dimensions:	4.6x4.1x2.1mm
Operating temperature (range):	-40°C ~ 85°C

All parameters

Manufacturer:: Texas Instruments Manufacturer part number: TPSM84209RKHT RoHS Case style: QFN-FCMOD9 Datasheet

In stock:

10 pcs.

Quantity of pcs.	1+	3+	10+	30+	100+
Net price (EUR)	3,1868	2,8317	2,6191	2,5140	2,4509

Add to comparison tool Add inquiry (RFQ)

Packaging:
10 Quantity (multiple: 1)

- +

• Parameters

Manufacturer:	Texas Instruments
Integrated circuit type:	Switching regulator
Input voltage range:	4.5V ~ 28V
Mounting:	SMD
Case:	QFN-FCMOD9
Dimensions:	4.6x4.1x2.1mm
Operating temperature (range):	-40°C ~ 85°C
