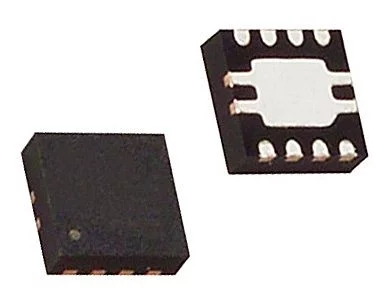

UCC27523DSDT Texas Instruments

Symbol Micros: UIUCC27523dsd

103935

UIUCC27523dsd

Contractor Symbol:

Case : SON08

Datasheet

Technical drawing Add to favourites

Dual Low Side Inv./Inv. Driver, 5A Peak, 4.5÷18V, tpd 7ns, -40÷140°C UCC27523DSDR (3000pcs/T&R), UCC27523DSDT (250pcs/tray)

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Supply voltage range:	4,5V~18V
Case:	SON08
Current:	5A
Manufacturer:	Texas Instruments
Integrated circuit type:	Driver
Operating temperature (range):	-40°C ~ 140°C
Number of channels:	0

All parameters

Manufacturer:: Texas Instruments Manufacturer part number: UCC27523DSDT RoHS Case style: SON08 Datasheet

In stock:

10 pcs.

Quantity of pcs.	1+	5+	20+	50+	210+
Net price (EUR)	1,9901	1,5764	1,4218	1,3695	1,3267

Add to comparison tool Add inquiry (RFQ)

Packaging:
210 Quantity (multiple: 1)

- +

• Parameters

Supply voltage range:	4,5V~18V
Case:	SON08
Current:	5A
Manufacturer:	Texas Instruments
Integrated circuit type:	Driver
Operating temperature (range):	-40°C ~ 140°C
Number of channels:	0
