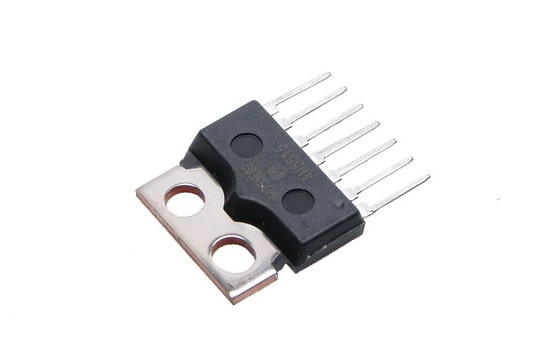

AN5515

Symbol Micros: ULAN5515

8391

ULAN5515

Contractor Symbol:

Case : SIP 7

Datasheet

Technical drawing Add to favourites

TV Vertical Deflection Output Circuit; 300mA; 6W; 0V~60V; -20°C~70°C;

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Nominal voltage:	0V ~ 60V
Case:	SIP7
Integrated circuit type:	Interface
Manufacturer:	MATSUSHI
Operating temperature (range):	-20°C ~ 70°C

All parameters

Manufacturer:: Matsushita Manufacturer part number: AN5515 Case style: SIP 7 Datasheet

In stock:

20 pcs.

Quantity of pcs.	1+	5+	20+	100+	300+
Net price (EUR)	2,5480	2,0239	1,8274	1,7291	1,6987

Add to comparison tool Add inquiry (RFQ)

Packaging:
20 Quantity (multiple: 1)

- +

• Parameters

Nominal voltage:	0V ~ 60V
Case:	SIP7
Integrated circuit type:	Interface
Manufacturer:	MATSUSHI
Operating temperature (range):	-20°C ~ 70°C
