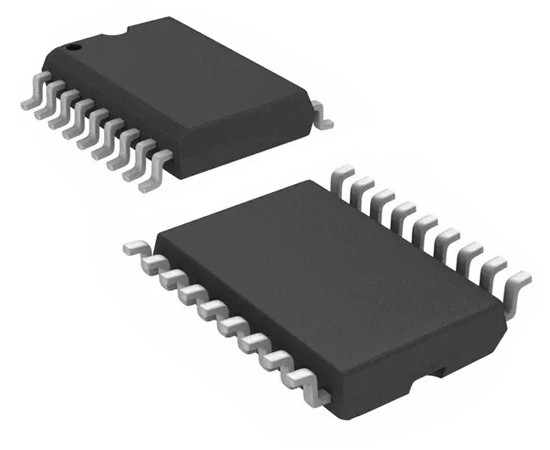

ULN2803ADW
Symbol Micros:
ULN2803adw
46245
ULN2803adw
Contractor Symbol:
Case : SOP18W
8-Channel NPN Darlington 0.5A 50V Driver for 5V TTL/CMOS, -40÷85°C Supersedes: ULN2803AFWG
Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437
Write sales // micros.com.pl or call: +48 785 054 437
Parameters
Supply voltage range: | 50V |
Case: | SOP18W |
Current: | 0,5A |
Manufacturer: | Texas Instruments |
Integrated circuit type: | Darlington Transistor Arrays |
Operating temperature (range): | -40°C ~ 85°C |
Number of channels: | 8 |
Manufacturer:: Texas Instruments
Manufacturer part number: ULN2803ADWR RoHS
Case style: SOP18Wt/r
Datasheet
In stock:
0 pcs.
Quantity of pcs. | 1+ | 3+ | 10+ | 30+ | 100+ |
---|---|---|---|---|---|
Net price (EUR) | 3,7184 | 3,3073 | 3,0583 | 2,9362 | 2,8610 |
Manufacturer:: Texas Instruments
Manufacturer part number: ULN2803ADWR
Case style: SOP18W
External warehouse:
40275 pcs.
Quantity of pcs. | 25+ (Need a significantly larger quantity? Ask for price). |
---|---|
Net price (EUR) | 3,5764 |
Supply voltage range: | 50V |
Case: | SOP18W |
Current: | 0,5A |
Manufacturer: | Texas Instruments |
Integrated circuit type: | Darlington Transistor Arrays |
Operating temperature (range): | -40°C ~ 85°C |
Number of channels: | 8 |
Equivalents
Manufacturer::
BORN
Manufacturer part number:
BULN2803LVS RoHS
Case style:
SOP18Wt/r
In stock
261 pcs.
Quantity of pcs. | 2+ | 10+ | 50+ | 261+ | 1305+ |
Net price (EUR) | 0,4416 | 0,2678 | 0,2060 | 0,1837 | 0,1762 |
Packaging: 261
Quantity (multiple 1)
Manufacturer::
BORN
Manufacturer part number:
BULN2803LVS RoHS
Case style:
SOP18Wt/r
In stock
289 pcs.
Quantity of pcs. | 2+ | 10+ | 50+ | 200+ | 739+ |
Net price (EUR) | 0,4416 | 0,2654 | 0,2044 | 0,1842 | 0,1762 |
Packaging: 739
Quantity (multiple 1)
