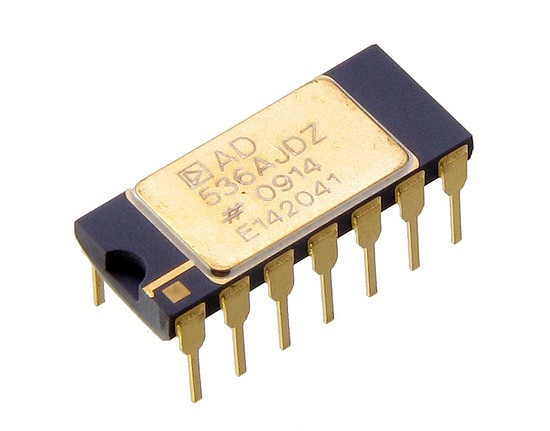

AD536AJDZ

Symbol Micros: UP536ajd

36028

UP536ajd

Contractor Symbol:

Case : CDIP14SB

Datasheet

Technical drawing Add to favourites

RMS-to-DC Converter; Buffered/Unbuffered Vout; BW 450kHz; +/-0.5%; +/-3V~+/-18V; 0°C~70°C; Substitute: AD536AJD; AD536AJDZ;

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Manufacturer:	ANALOG DEVICES
Integrated circuit type:	DAC Converter
Supply voltage range:	3V ~ 18V
Output current:	20mA
Operating temperature (range):	0°C ~ 70°C
Case:	CDIP14SB

All parameters

Manufacturer:: AD - Analog Devices Manufacturer part number: AD536AJDZ RoHS Case style: CDIP14SB Datasheet

In stock:

1 pcs.

Quantity of pcs.	1+	2+	4+	10+	20+
Net price (EUR)	37,4190	34,1304	31,6875	29,3855	28,1406

Add to comparison tool Add inquiry (RFQ)

Packaging:
2 Quantity (multiple: 1)

- +

Manufacturer:: AD - Analog Devices Manufacturer part number: AD536AJDZ Case style: CDIP14SB

External warehouse:

201 pcs.

Quantity of pcs.	1+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	47,3551

Add to comparison tool Add inquiry (RFQ)

Packaging:
1

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Manufacturer:	ANALOG DEVICES
Integrated circuit type:	DAC Converter
Supply voltage range:	3V ~ 18V
Output current:	20mA
Operating temperature (range):	0°C ~ 70°C
Case:	CDIP14SB
