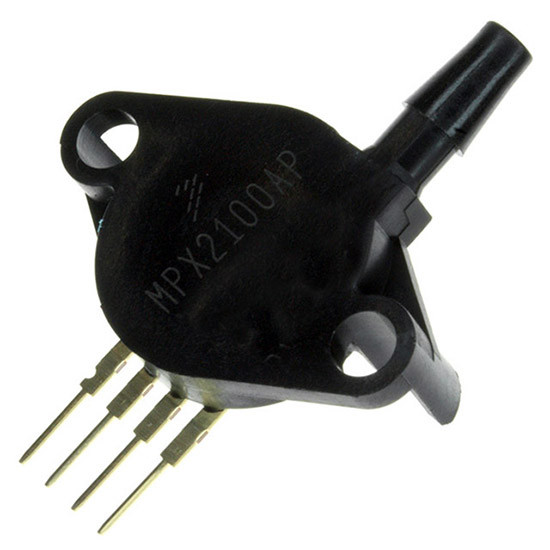

MPX2100AP

Symbol Micros: UPMPX2100ap
Contractor Symbol:
Case : CASE344B-01
Technical drawing Add to favourites
Pressure Sensor (Absolute), 0÷100kPa, Vout 0÷40mV, 10÷16V, -40÷125°C
Parameters
Case: CASE344B-01
Supply voltage range: 10÷16V
Working temperature range: -40÷125°C
Manufacturer: FREESCALE
Integrated circuit type: Pressure sensor
Mounting: THT
Manufacturer:: NXP Manufacturer part number: MPX2100AP Case style: CASE344B-01
External warehouse:
70 pcs.
Quantity of pcs. 20+ (Need a significantly larger quantity? Ask for price).
Net price (EUR) 13,1287
Packaging:
20
Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.
Manufacturer:: NXP Manufacturer part number: MPX2100AP Case style: CASE344B-01
External warehouse:
300 pcs.
Quantity of pcs. 1+ (Need a significantly larger quantity? Ask for price).
Net price (EUR) 15,1286
Add to comparison tool
Packaging:
1
Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.
Manufacturer:: NXP Manufacturer part number: MPX2100AP Case style: CASE344B-01
External warehouse:
260 pcs.
Quantity of pcs. 20+ (Need a significantly larger quantity? Ask for price).
Net price (EUR) 12,1662
Add to comparison tool
Packaging:
20
Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.
Case: CASE344B-01
Supply voltage range: 10÷16V
Working temperature range: -40÷125°C
Manufacturer: FREESCALE
Integrated circuit type: Pressure sensor
Mounting: THT
Detailed description

Manufacturer: Freescale Semiconductor Category: pressure sensor Series: MPX2100 Pressure Type: Absolute Measuring Range: 0 ~ 14.5 PSI ( 0 ~ 100kPa) Supply Voltage: 10V ~ 16V Sensitivity: 0.4mV/kPa Supply Current: 6mA Full Scale Span: 38.5 ~ 41.5mV Offset: -2.0 ~ 2.0mV Input Impedance: 1000 ~ 2500Ω Output Impedance: 1400 ~ 3000Ω Response Time (10% to 90%): 1.0ms Operating Temperature: -40°C ~ 125°C Package/Case: 4-SIP Module
