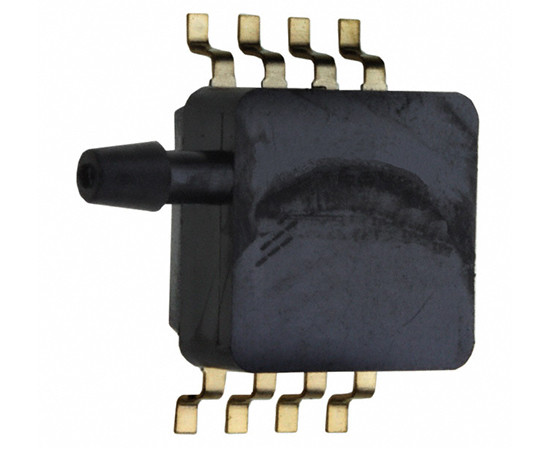

MPXAZ6115AP Freescale

Symbol Micros: UPMPXAZ6115ap
Contractor Symbol:
Case : CASE98ASA99303D
Technical drawing Add to favourites
Pressure Sensor (Absolute), 15÷115kPa, Vout 0.2÷4.7V, 4.75÷5.25V, -40÷125°C
Parameters
Case: CASE98ASA99303D
Supply voltage range: 4,75~5,25V
Working temperature range: -40÷125°C
Manufacturer: FREESCALE
Integrated circuit type: Pressure sensor
Mounting: SMD
Manufacturer:: FREESCALE Manufacturer part number: MPXAZ6115AP RoHS Case style: CASE98ASA99303D Datasheet
In stock:
3 pcs.
Quantity of pcs. 1+ 2+ 3+ 5+ 7+
Net price (EUR) 153,8806 151,2629 150,0366 148,7159 147,9612
Add to comparison tool
Packaging:
7
Manufacturer:: NXP Manufacturer part number: MPXAZ6115AP Case style: CASE98ASA99303D
External warehouse:
125 pcs.
Quantity of pcs. 25+ (Need a significantly larger quantity? Ask for price).
Net price (EUR) 147,9612
Add to comparison tool
Packaging:
25
Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.
Case: CASE98ASA99303D
Supply voltage range: 4,75~5,25V
Working temperature range: -40÷125°C
Manufacturer: FREESCALE
Integrated circuit type: Pressure sensor
Mounting: SMD
Detailed description

Manufacturer: Freescale Semiconductor Category: pressure sensor Series: MPXAZ6115A Pressure Type: Absolute Measuring Range: 15 ~ 115kPa Supply Voltage: 4.75V ~ 5.25V Sensitivity: 45mV/kPa Supply Current: 6 ~ 10mA Full Scale Span: 4.5V Output: 0.2V ~ 4.7V Response Time (10% to 90%): 1.0ms Operating Temperature: -40°C ~ 125°C Package/Case: 8-SMD Module
