SMTHS07

Symbol Micros: UPSMTHS07

35845

UPSMTHS07

Contractor Symbol:

Case : Rys.SMTHS07

Datasheet

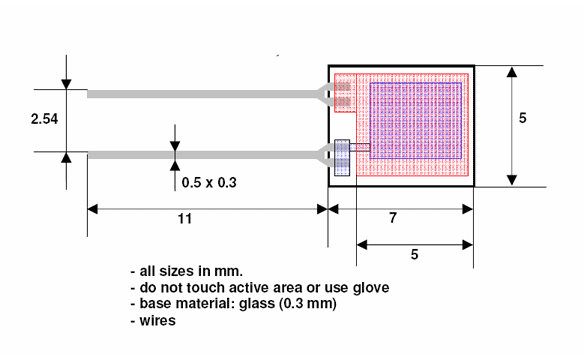

Technical drawing Add to favourites

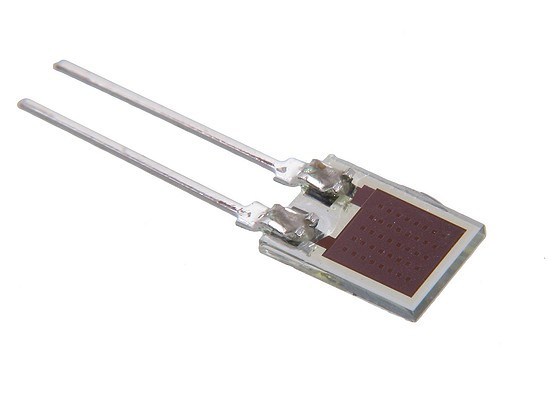

Capacitive Humidity Sensor, 0÷100% RH, 330pF @ 55% RH, -40÷120°C

Product description

Parameters

Case:	Rys.SMTHS07
Working temperature range:	-40°C ~ 120°C
Manufacturer:	Smartec
Integrated circuit type:	Sensor
Type of sensor:	Humidity sensor

All parameters

Manufacturer:: SMARTEC Manufacturer part number: SMTHS07 RoHS Case style: Rys.SMTHS07 Datasheet

In stock:

2 pcs.

Quantity of pcs.	1+	2+	10+	30+	100+
Net price (EUR)	3,4504	3,1839	2,8356	2,7210	2,6532

Add to comparison tool Add inquiry (RFQ)

Stock available
Until stock lasts Packaging:
2 Quantity (multiple: 1)

- +

• Parameters
• Description

Case:	Rys.SMTHS07
Working temperature range:	-40°C ~ 120°C
Manufacturer:	Smartec
Integrated circuit type:	Sensor
Type of sensor:	Humidity sensor

Detailed description

SMTHS07 is a capacitive humidity sensor built on a polymer dielectric layer placed between two conductive layers. It measures humidity in the range from 0 to 100% RH with a response time of 15s (30-90% RH). The nominal capacitance of the sensor is 330pF±20pF (23°C, 55% RH). It features a non-linearity error and hysteresis loop width not exceeding ±2% RH in the range of 20-95% RH and long-term stability of 0.2% RH over a one-year period. The permissible operating temperature range spans from -40°C to +120°C. It is resistant to moisture condensation.

APPLICATIONS: air conditioning and heating devices, medical equipment (incubators), weather stations, automotive industry, sanitary facilities, everyday household equipment (refrigerators).
