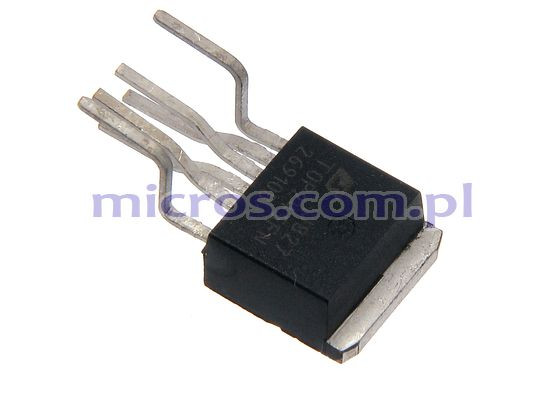

TOP245FN

Symbol Micros: UPTOP245fn

45872

UPTOP245fn

Contractor Symbol:

Case : TO262/7C

Datasheet

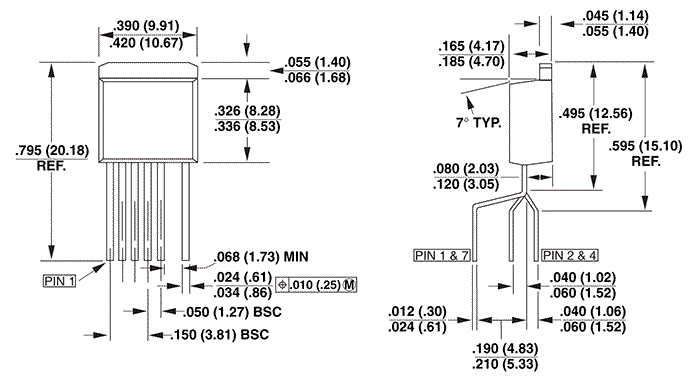

Technical drawing Add to favourites

EcoSmart Off-line Switcher / TopSwitch-GX family, 40/85W (230 VAC +/-15%)

Parameters

Manufacturer:	Power Integrations
Integrated circuit type:	AC/DC converter
Input voltage range:	85V ~ 265V
Mounting:	THT
Case:	TO262/7C
Dimensions:	10.67x8.53x4.7mm
Operating temperature (range):	-40°C ~ 150°C

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Manufacturer:	Power Integrations
Integrated circuit type:	AC/DC converter
Input voltage range:	85V ~ 265V
Mounting:	THT
Case:	TO262/7C
Dimensions:	10.67x8.53x4.7mm
Operating temperature (range):	-40°C ~ 150°C
