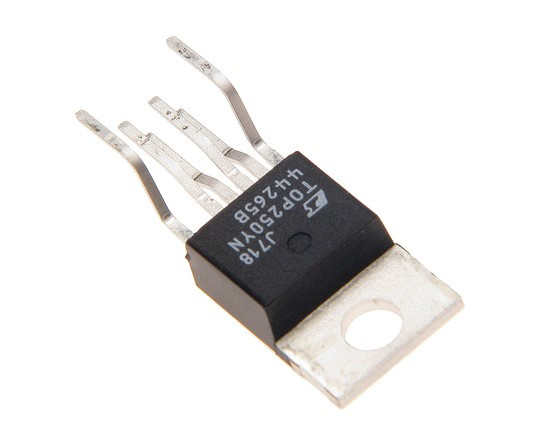

TOP250YN

Symbol Micros: UPTOP250yn

27947

UPTOP250yn

Contractor Symbol:

Case : TO220/7C

Datasheet

Technical drawing Add to favourites

EcoSmart Off-line Switcher / TopSwitch-GX family, 135/290W (230 VAC +/-15%)

Parameters

Manufacturer:	Power Integrations
Integrated circuit type:	AC/DC converter
Input voltage range:	85V ~ 265V
Mounting:	THT
Case:	TO220/7C
Dimensions:	15.31x10.67x4.7mm
Operating temperature (range):	-40°C ~ 150°C

All parameters

Manufacturer:: Power Integrations Manufacturer part number: TOP250YN RoHS Case style: TO220/7C Datasheet

In stock:

17 pcs.

Quantity of pcs.	1+	5+	20+	100+	200+
Net price (EUR)	4,2285	3,6342	3,4031	3,2804	3,2521

Add to comparison tool Add inquiry (RFQ)

Packaging:
20 Quantity (multiple: 1)

- +

Manufacturer:: Power Integrations Manufacturer part number: TOP250YN Case style: TO220/7C

External warehouse:

1550 pcs.

Quantity of pcs.	50+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	3,2521

Add to comparison tool Add inquiry (RFQ)

Packaging:
50

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Manufacturer:	Power Integrations
Integrated circuit type:	AC/DC converter
Input voltage range:	85V ~ 265V
Mounting:	THT
Case:	TO220/7C
Dimensions:	15.31x10.67x4.7mm
Operating temperature (range):	-40°C ~ 150°C
