12038B2ML MAXAIR fan AC
Symbol Micros:
W 1238v220k2
Case : Rys.12038B2ML
120x120x38mm, 230V AC, ball bearing, 74CFM=125,0m3/h; 0,09A; 15W; 2300RPM; 39dBA 2 wires without rotation sensor
Parameters
Efficiency: | 125m3/h |
Power consumption: | 15W |
Noise level: | 39dBa |
Speed: | 2300RPM |
Current: | 90mA |
Dimensions: | 120x120x38mm |
Manufacturer: | MAXAIR |
Efficiency: | 125m3/h |
Power consumption: | 15W |
Noise level: | 39dBa |
Speed: | 2300RPM |
Current: | 90mA |
Dimensions: | 120x120x38mm |
Manufacturer: | MAXAIR |
Bearing type: | Ball bearing |
Leads: | Wires |
Voltage [AC]: | 230V |
Detailed description

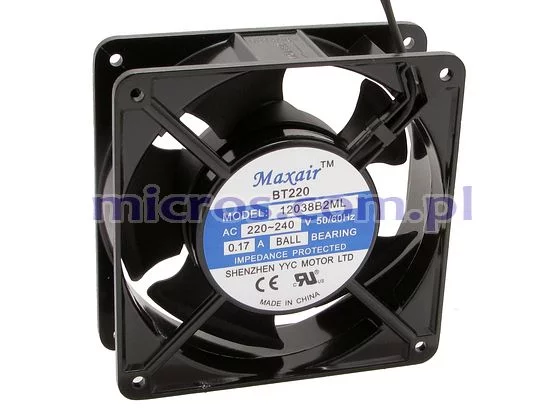

Fan 12038B2ML 120x120x38mm 230V
- Dimension: 120 x 120 x 38 mm
- Rated voltage: 230VAC / 50Hz
- Current consumption: 0.09A
- Power: 15W
- Speed: 2400 rpm
- Airflow: 74 CFM = 125.0m³/h
- Noise level: 39 dBA
- Ball bearing
- 2 AWG22 wires, approximately 280mm in length
- Weight: 480g
