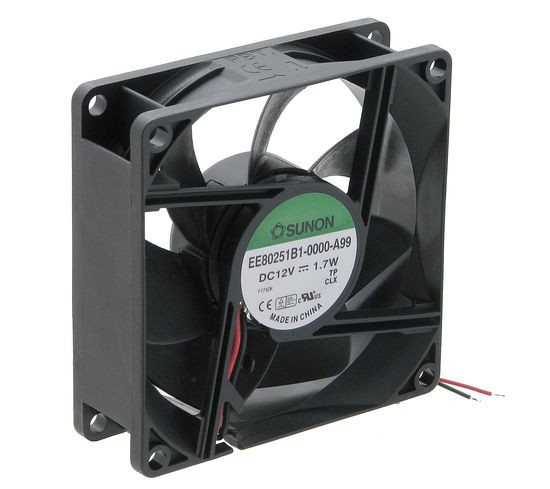

EE80251B1-000U-A99 SUNON fan DC

Symbol Micros: W 8025v12k1-E
Contractor Symbol:
Case : EE80251B1-0000-A99
Add to favourites
Cooling Fan 12V DC; 80x80x25mm, ball bearing, 41CFM=69,7m3/h; 0,145A; 1,7W; 3200RPM; 33dBa; 70000h/40°C, 75g 2 wires AWG28, legnth about 300mm
Parameters
Efficiency: 69,7m3/h
Noise level: 33dBa
Current: 0,145A
Power consumption: 1,7W
Speed: 3200RPM
Dimensions: 80x80x25mm
Bearing type: Ball bearing


Item available on request
Efficiency: 69,7m3/h
Noise level: 33dBa
Current: 0,145A
Power consumption: 1,7W
Speed: 3200RPM
Dimensions: 80x80x25mm
Bearing type: Ball bearing
Manufacturer: SUNON
Leads: Wires
Voltage [DC]: 12V
Detailed description

Fan EE80251B1-A99 80x80x25mm 12V

  • Dimensions: 80 x 80 x 25 mm
  • Rated voltage: 12VDC / 50Hz
  • Current consumption: 0.145A
  • Power: 1.7W
  • Revolutions per minute: 3200 rpm
  • Airflow: 41 CFM = 69.7m³/h
  • Noise level: 33 dBA
  • Ball bearing
  • 2 AWG28 wires, approximately 300mm long
  • Weight: 77g
