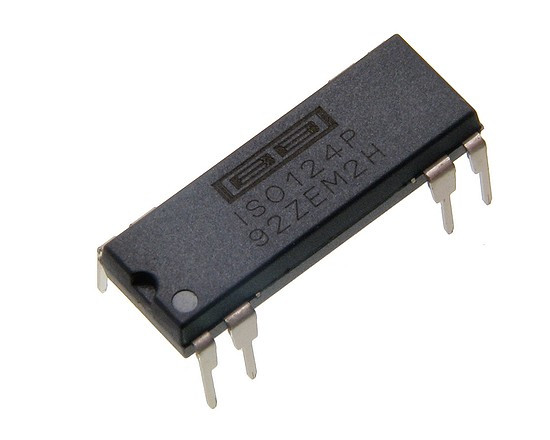

ISO124P

Symbol Micros: WOISO124p

36173

WOISO124p

Contractor Symbol:

Case : PDIP16-8

Datasheet

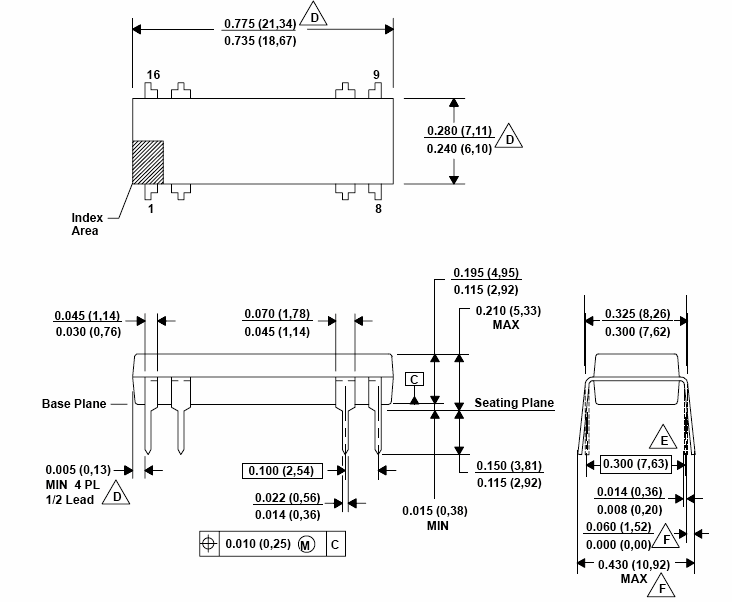

Technical drawing Add to favourites

Prec. Isolation Amp, 1500Vrms, +/-0.01% FSR max NL, BW 0.05MHz, SR 2V/us, +/-15V

Parameters

Nominal voltage:	4,5V ~ 18V
Bandwidth:	0,05MHz
Vaoltage rise speed:	2V/us
Case:	PDIP16-8
Manufacturer:	Texas Instruments
Operating temperature (range):	-25°C ~ 85°C
Integrated circuit type:	Isolation amplifier

All parameters

Manufacturer:: Burr-Brown Manufacturer part number: ISO124P RoHS Case style: PDIP16-8 Datasheet

In stock:

10 pcs.

Quantity of pcs.	1+	3+	10+	20+	50+
Net price (EUR)	13,0748	12,3999	11,9725	11,8161	11,6736

Add to comparison tool Add inquiry (RFQ)

Packaging:
10 Quantity (multiple: 1)

- +

Manufacturer:: Texas Instruments Manufacturer part number: ISO124P Case style: PDIP16-8

External warehouse:

635 pcs.

Quantity of pcs.	1+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	11,6736

Add to comparison tool Add inquiry (RFQ)

Packaging:
1

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Nominal voltage:	4,5V ~ 18V
Bandwidth:	0,05MHz
Vaoltage rise speed:	2V/us
Case:	PDIP16-8
Manufacturer:	Texas Instruments
Operating temperature (range):	-25°C ~ 85°C
Integrated circuit type:	Isolation amplifier
Mounting:	THT
Number of channels:	1
